The flow of the roll back procedure is as follows:

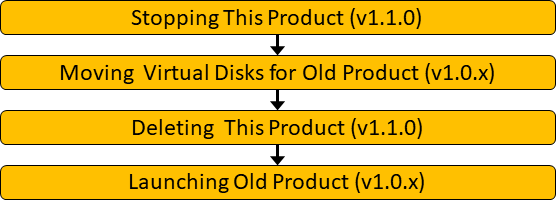

Figure C.3 Rollback Procedures for VMware vSphere Environment
Stopping This Product (V1.1.0)
Refer to "6.6.1 How to Stop the System" for information on how to stop this product.
Moving Virtual Disks of the Old Product (V1.0.x)
Move the virtual disk files of the old product from the folder of this product to the folder of the old product.
For example, the procedure using vSphere Client is as follows.
Launch the vSphere client and then click Storage from the Configuration tab.
Right-click the datastore where this product is located and then click Browse Datastore.
Navigate to the folder of the product, select and right-click the two virtual disk files (system area and cache area) simultaneously, and then click Move to.
In the Move Items To dialog box, select the folder of the old product and then click Move.
Deleting This Product (V1.1.0)
Delete the virtual appliance of this product.
Refer to the documentation of the virtualization software for information on how to delete the virtual machines of this product from the virtualization software.
Note
Do not delete the objects on the bucket used by this product.
Launching the Old Product (V1.0.x)
Launch the virtual appliance of the old product.
Refer to the documentation of the virtualization software for information on how to launch the virtual machine of the old product from the virtualization software.
