This section explains the hardware configuration on using the Remote Power Distribution Unit:
SPARC Enterprise M3000(100V)
Two for up to two Remote Power Distribution Units (100V) SP0X9RP1F SPARC Enterprise M3000

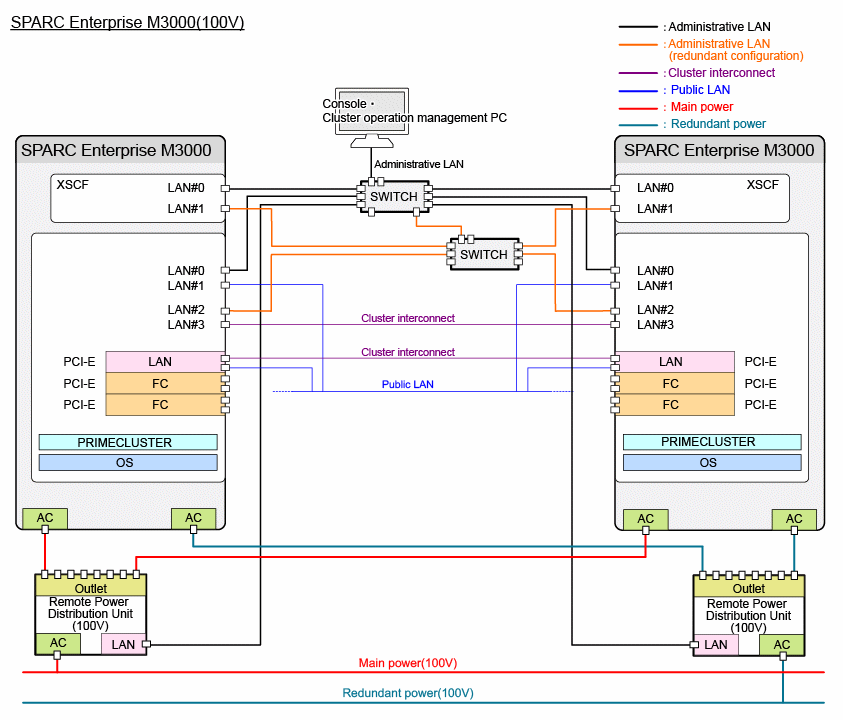

Figure J.1 Connection diagram for SPARC Enterprise M3000(100V)
SPARC Enterprise M3000(200V)
Two for up to seven Remote Power Distribution Units (200V) SP0X9RP2F SPARC Enterprise M3000

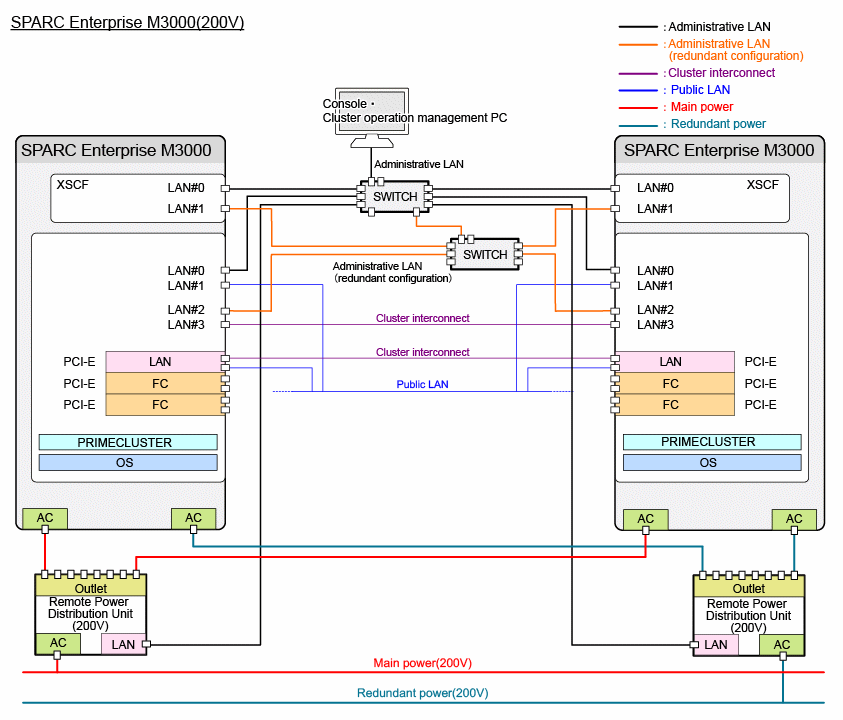

Figure J.2 Connection diagram for SPARC Enterprise M3000(200V)
SPARC Enterprise M4000(200V)
Two for up to eight Remote Power Distribution Units (100V) SP0X9RP1F SPARC Enterprise M4000
Two for one 100V-200V linked switch (PDU-224 by ISA (Recommended)) SPARC Enterprise M4000
Note
In addition to 200V power supply, 100V power supply for control is required in this configuration.
If the 100V power supply is cut, the 200V outlet, linked with the power supply, will also be OFF.

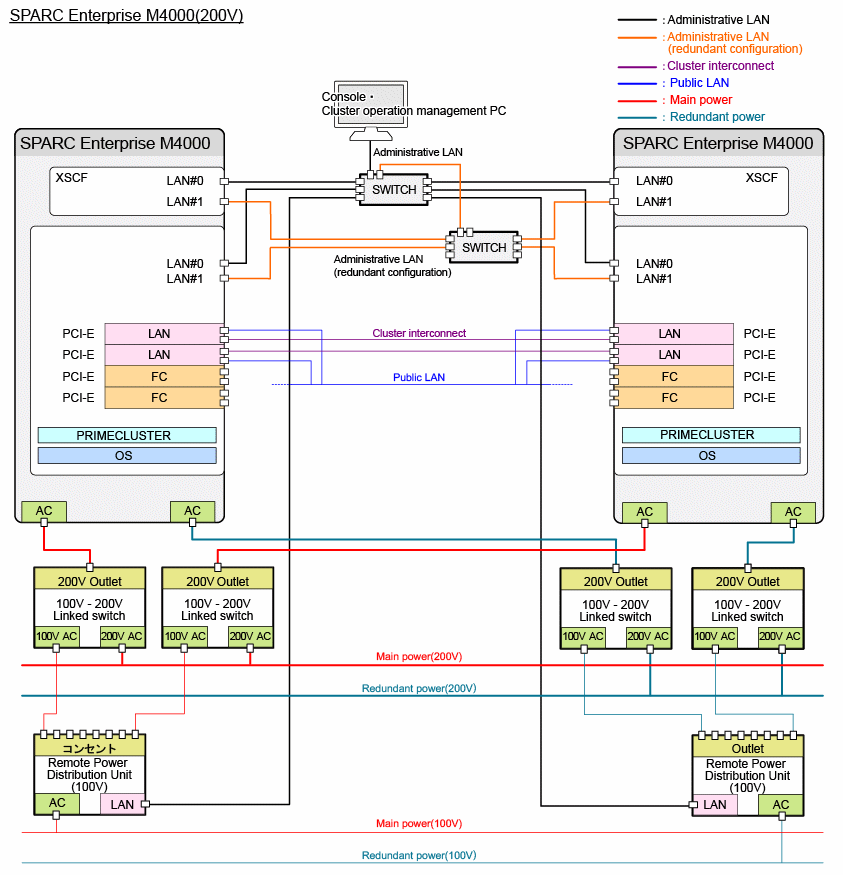

Figure J.3 Connection diagram for SPARC Enterprise M4000(200V)
SPARC Enterprise M5000(200V)
Two for up to four Remote Power Distribution Units(100V) SP0X9RP1F SPARC Enterprise M5000
Four for one 100V-200V linked switch (PDU-224 by ISA (Recommended)) SPARC Enterprise M5000
Note
In addition to 200V power supply, 100V power supply for control is required in this configuration.
If the 100V power supply is cut, the 200V outlet, linked with the power supply, will also be OFF.

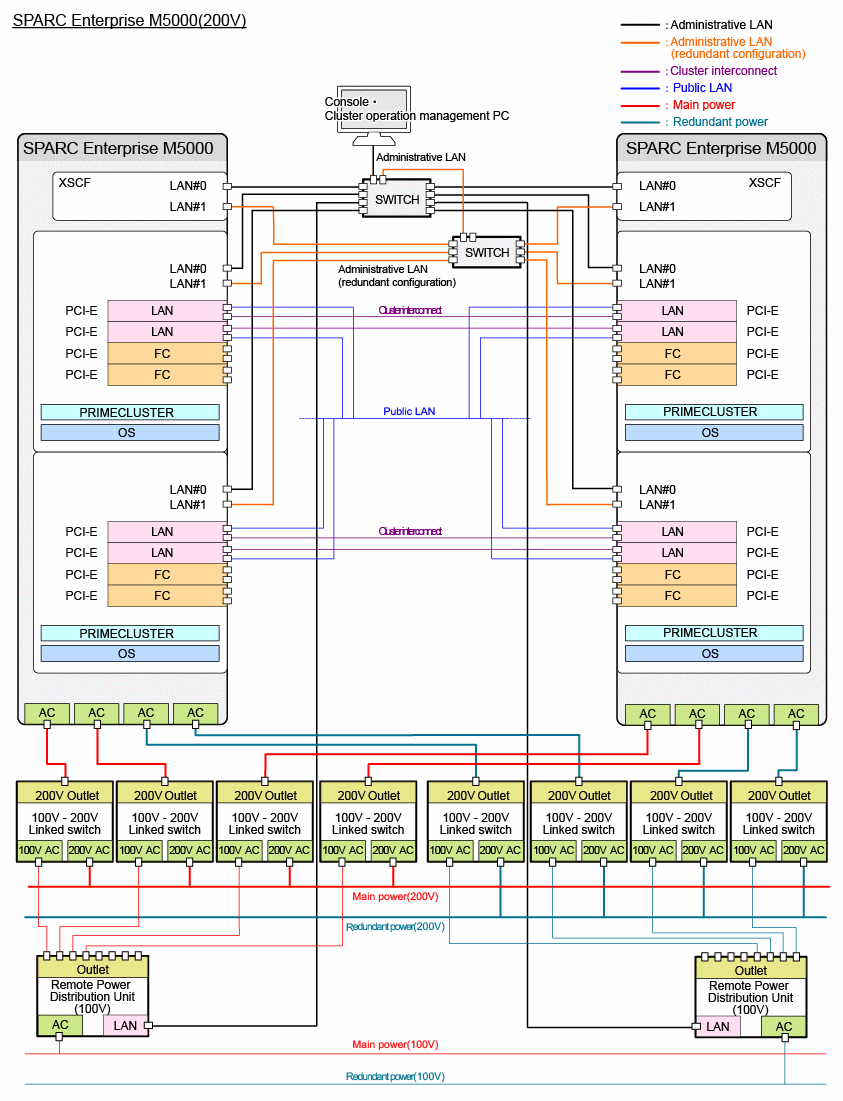

Figure J.4 Connection diagram for SPARC Enterprise M5000(200V)
SPARC M10-1(100V)
Two for one Remote Power Distribution Unit (100V) SP0X9RP1F SPARC M10-1

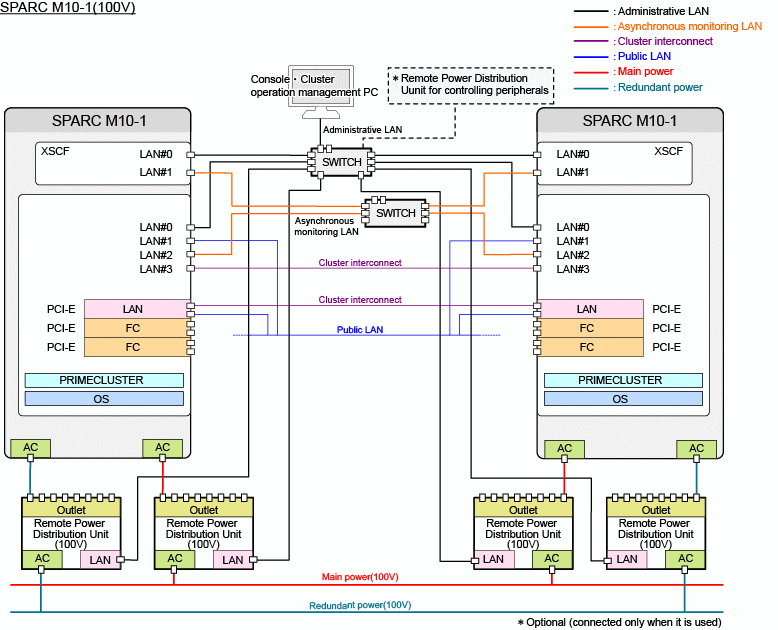

Figure J.5 Connection diagram for SPARC M10-1(100V)
SPARC M10-1(200V)
Two for up to five Remote Power Distribution Units (200V) SP0X9RP2F SPARC M10-1

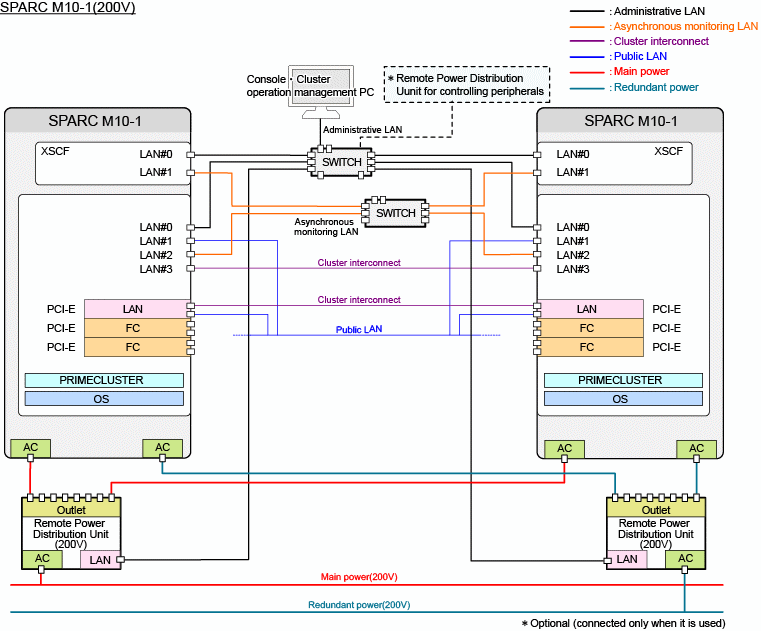

Figure J.6 Connection diagram for SPARC M10-1(200V)
SPARC M10-4 (200V)
Two for up to eight Remote Power Distribution Units (100V) SP0X9RP1F SPARC M10-4
Two for one 100V-200V linked switch (PDU-224 by ISA (Recommended)) SPARC M10-4
Note
In addition to 200V power supply, 100V power supply for control is required in this configuration.
If the 100V power supply is cut, the 200V outlet, linked with the power supply, will also be OFF.

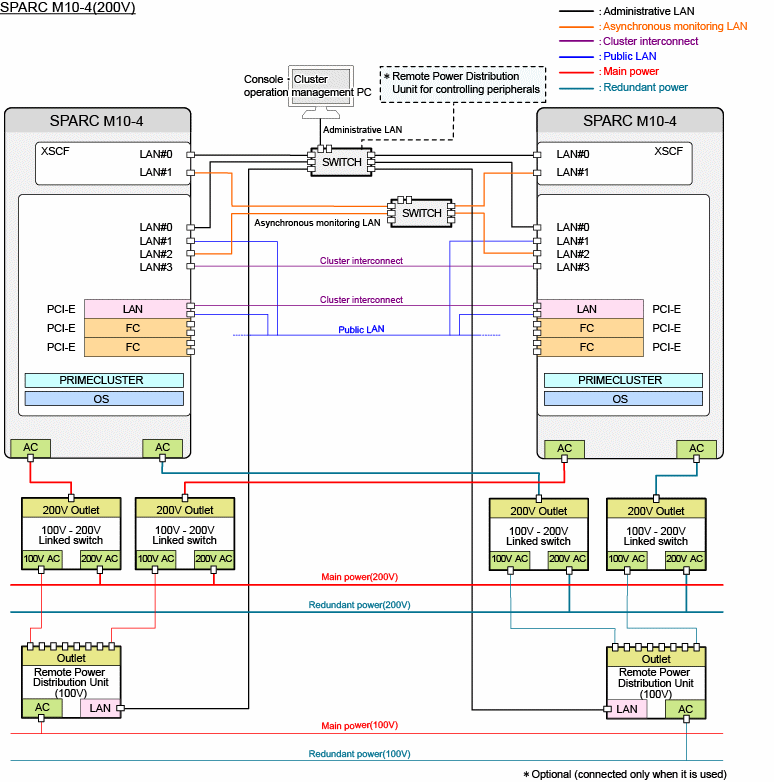

Figure J.7 Connection diagram for SPARC M10-4(200V)
