This section explains the logical network configuration.
The logical network configuration which can be configured by using auto-configuration of network devices using simple configuration mode is as shown below.

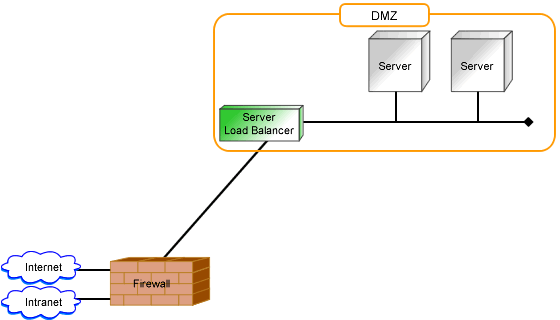

Figure I.1 Example Logical Network Configuration (For Single-tier)
Figure I.2 Example Logical Network Configuration (For Two-tier)

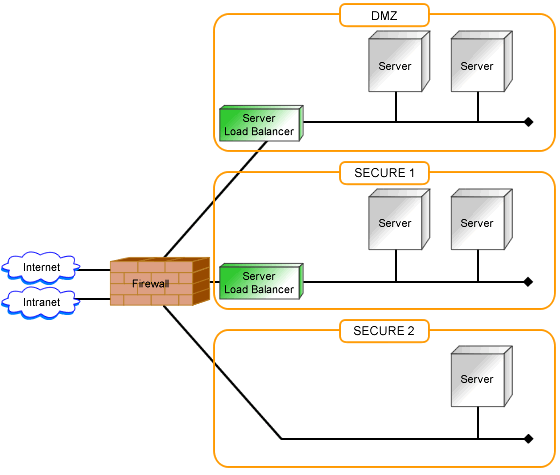

Figure I.3 Example Logical Network Configuration (For Three-tier)
* Note: Server load balancers may not be available. Either the Internet or an intranet can be selected
