This section explains a system configuration.
Example of System Configuration
System configuration examples are given below.
Servers for VCD media storage are necessary when using the customization function of the virtual L-Server guest OSs.
For details, refer to "8.10.12 Customization Function of Guest OS" in the "Setup Guide CE".

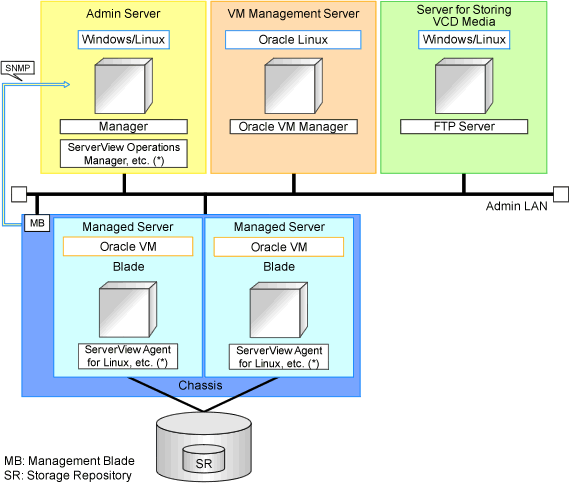

Figure E.34 Example of System Configuration
* Note: For details of the required software, refer to "6.1.2.4 Required Software" in the "Overview".
Network Configuration Example
Network configurations when using OVM for x86 3.x are as below.
In Resource Orchestrator, when creating a virtual L-Server (VM guest), virtual NICs and the virtual machine network are automatically connected.
Create the virtual machine network using Oracle VM Manager for each VLAN-ID in advance. Use the same virtual machine network name when using the same VLAN-IDs for VM hosts.
Figure E.35 Network Configuration Example
L-Server Creation Procedure
Use the following procedure to create L-Servers:
Figure E.36 Flow of L-Server Creation
For details on pre-setup preparations, refer to "E.9.2 Preparations for Servers".
For details on how to install Resource Orchestrator, refer to "2.1 Manager Installation" in the "Setup Guide CE".
For details on setup, refer to "7.2 Registering Resources with Resource Orchestrator" in the "Setup Guide CE" and "8.2 Installing Software and Registering Agents on VM Hosts" in the "User's Guide for Infrastructure Administrators (Resource Management) CE".
For details on installing agents, refer to "2.2 Agent Installation" in the "Setup Guide CE".
For details on how to create an L-Server, refer to "7.5 Creating L-Servers" in the "Setup Guide CE".
