This section explains the system configuration necessary when using RHEL5-Xen as server virtualization software.
Example of System Configuration
An example system configuration using RHEL5-Xen is given below.

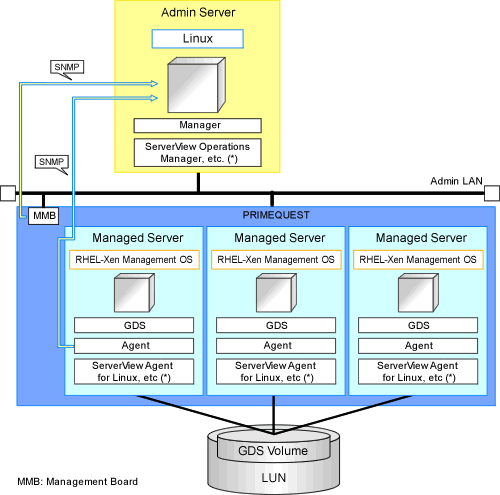

Figure E.12 System Configuration Example Using RHEL5-Xen
* Note: For details of the required software, refer to "6.1.2.4 Required Software" in the "Overview".
Network Configuration Example
An example network configuration using RHEL5-Xen is given below:

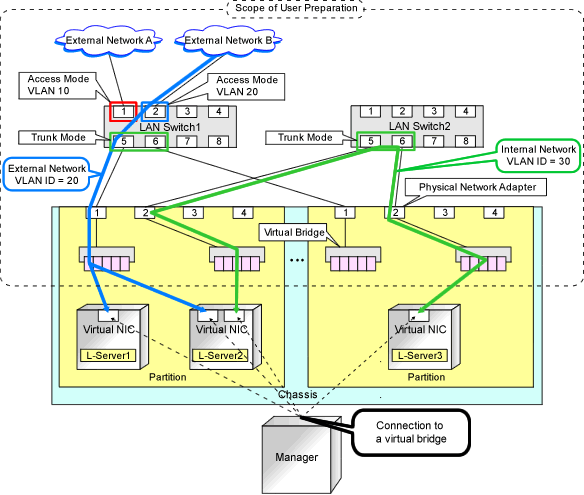

Figure E.13 Virtual Bridge Settings Using Network Resources
L-Server Creation Procedure
Use the following procedure to create L-Servers:
Figure E.14 Resource Orchestrator Setup Procedure
For details on pre-setup preparations, refer to "E.3 RHEL5-Xen".
For details on how to install Resource Orchestrator, refer to "Chapter 2 Installation" in the "Setup Guide CE".
For details on setup, refer to "8.4 RHEL5-Xen" in the "Setup Guide CE".
For details on how to create an L-Server, refer to "8.4.6 Creating L-Servers" in the "Setup Guide CE".
