This section describes the recent operations area of the ROR console.

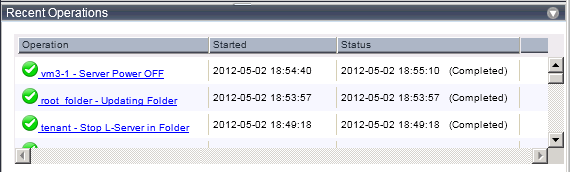

Figure A.21 Recent Operations
The recent operations area shows the status of operations that were recently performed. The result of a completed operation shows the operation's completion time and the related resource name. For operations that are still running, a progress bar is shown to indicate the current progress state.
Each operation displayed in the recent operation area provides the following information.
Information Displayed in the Recent Operations Area
The executed operation and the target resource name are displayed.
The process name is displayed while the process is being executed.
The date and time at which the operation was started is displayed.
The status of the executed operation is displayed.
The date and time at which the process was completed is displayed.
Point
When an operation is executed in a tab other than the [Resource] tab, e.g., the [L-Platform] tab, multiple entries might be displayed in the Recent Operations for that single operation.
When multiple entries are displayed, match the resource name displayed in the tab on which the operation has been executed, to the resource name in the [Operation] column to locate the operation in concern.
When the link in the [Operation] column is clicked, the [Progress Details] dialog is displayed.
The [Progress Details] dialog displays the following information:
The list of the executed processes and the status are displayed for the selected operation.
If an operation is performed simultaneously for multiple resources, the processes are displayed in a tree view for each target resource.
The list of any error messages that occurred during the operation is displayed.
Detailed information is displayed under the list when each message is selected.
For operations that can be canceled, the [Cancel] link is displayed to the right of the [Status] column.
Clicking this link displays a confirmation dialog for canceling the operation.
However, in the following cases, processing will be interrupted and the cancellation will fail:
A power operation is performed targeting a managed server with which communication is not possible
Remote communication is not possible with the agent used for image operations for a managed server because either of the following is being performed:
Backup of system images
Collection of cloning images
