This section explains how to perform maintenance on the hardware devices managed by Resource Orchestrator.
Flow of Hardware Maintenance when a Server Fails

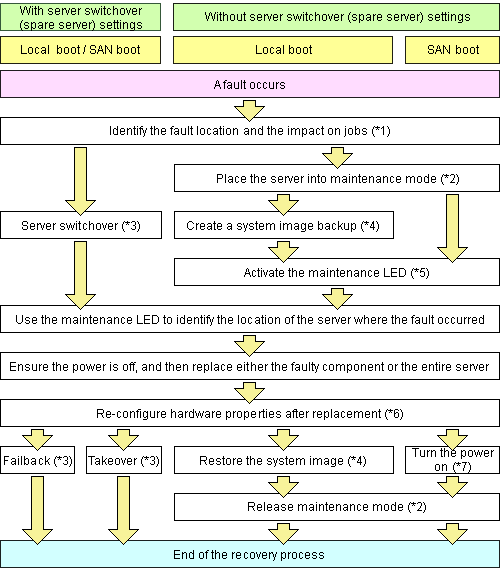

The following flowchart shows the procedure for maintaining hardware when failures occur on registered servers.
Figure 6.1 Flow of Hardware Maintenance when a Server Fails
*1: For details on how to identify failures, refer to "11.3 Addressing Resource Failures".
*2: For details on how to configure and release maintenance mode, refer to "Appendix C Maintenance Mode" in the "User's Guide VE".
*3: For details on server switchover, failback, and takeover, refer to "Chapter 4 Server Switchover".
*4: For details on backing up and restoring system images, refer to "Chapter 16 Backup and Restore" in the "User's Guide VE".
*5: For details on maintenance LED operations, refer to "6.2.1 Maintenance LED". Note that maintenance LED operations are only supported for PRIMERGY BX servers.
*6: For details on reconfiguring hardware properties, refer to the following sections:
For blade servers: Refer to "6.2.3 Replacing Servers".
For servers other than blade servers: Refer to "6.3.2 Replacing Servers".
*7: For details on power control, refer to "Chapter 14 Power Control" in the "User's Guide VE".
The following hardware replacements can be performed:
Replacing Servers
Replace a server that has been registered in Resource Orchestrator.
For details on replacing servers, refer to the following sections:
For blade servers: Refer to "6.2.3 Replacing Servers".
For servers other than blade servers: Refer to "6.3.2 Replacing Servers".
Replacing Server Components
Replace hardware components (such as a NIC, HBA, or hard disk) of a registered server.
For details on replacing server components, refer to the following sections:
For blade servers: Refer to "6.2.4 Replacing Server Components".
For servers other than blade servers: Refer to "6.3.3 Replacing and Adding Server Components".
Replacing Non-server Hardware
Replace registered chassis, management blades, or any other hardware components external to servers.
For details on replacing hardware other than servers, refer to the following sections:
For blade servers: Refer to "6.2.5 Replacing Non-server Hardware".
For servers other than blade servers: Refer to "6.3.4 Replacing Non-server Hardware and Upgrading Firmware".
