B.4.2 Example of the Single system with NIC sharing

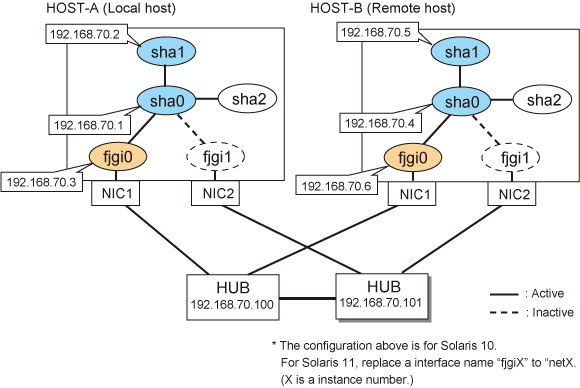

This section describes an example configuration procedure of the network shown in the diagram below.

If the Standby patrol monitoring function is not used, omit 5) in the procedure for setting up on each host.

[HOST-A]

1) Setting up the system

1-1) Define IP addresses and hostnames in /etc/inet/hosts file.

192.168.70.1    hosta1  # HOST-A Virtual IP (1)
192.168.70.2    hosta2  # HOST-A Virtual IP (2)
192.168.70.3    host11  # HOST-A Physical IP
192.168.70.4    hostb1  # HOST-B Virtual IP (1)
192.168.70.5    hostb2  # HOST-B Virtual IP (2)
192.168.70.6    host21  # HOST-B Physical IP
192.168.70.100  swhub1  # Primary HUB IP
192.168.70.101  swhub2  # Secondary HUB IP

1-2) For Solaris 10
Write the hostnames defined above in /etc/hostname.fjgi0 file. If a file does not exist, create a new file.

1-2) For Solaris 11
Set the host by the interface used with the ipadm(1M) command and also by the host name defined above.

1-3) Define the subnet mask in /etc/inet/netmasks file.

192.168.70.0    255.255.255.0

2) Reboot (For Solaris 10)

Run the following command to reboot the system. Make sure fjgi0 are enabled as IPv4 interfaces after rebooting the system.

# /usr/sbin/shutdown -y -i6 -g0

3) Creation of virtual interface

3-1) For Solaris 10

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.1 -e 192.168.70.3 -t fjgi0,fjgi1
# /opt/FJSVhanet/usr/sbin/hanetconfig copy -n sha0,sha1 -i 192.168.70.2

3-1) For Solaris 11

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.1 -e 192.168.70.3 -t net0,net1
# /opt/FJSVhanet/usr/sbin/hanetconfig copy -n sha0,sha1 -i 192.168.70.2

Note

Ensure that the physical IP address specified using option '-e' is the same IP address configured in /etc/hostname.fjgi0 with the ipadm(1M) command.

4) Setting up the HUB monitoring function

# /opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b off
# /opt/FJSVhanet/usr/sbin/hanetpoll copy -n sha0,sha1

5) Setting up the Standby patrol monitoring function

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha2 -m p -t sha0

6) Activation of virtual interface

# /opt/FJSVhanet/usr/sbin/strhanet

7) Starting the HUB monitoring function

# /opt/FJSVhanet/usr/sbin/hanetpoll on

[HOST-B]

1) Setting up the system

1-1) Define IP addresses and hostnames in /etc/inet/hosts file. Defined information is the same as for HOST-A.

1-2) For Solaris 10
Write the hostnames defined above in /etc/hostname.fjgi0 file. If a file does not exist, create a new file.

1-2) For Solaris 11
Set the host by the interface used with the ipadm(1M) command and also by the host name defined above.

1-3) Define the subnet mask in /etc/inet/netmasks file. Defined content is same as HOST-A.

2) Reboot (For Solaris 10)

Run the following command to reboot the system. Make sure fjgi0 are enabled as IPv4 interfaces after rebooting the system.

# /usr/sbin/shutdown -y -i6 -g0

3) Creation of virtual interface

3-1) For Solaris 10

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.4 -e 192.168.70.6 -t fjgi0,fjgi1
# /opt/FJSVhanet/usr/sbin/hanetconfig copy -n sha0,sha1 -i 192.168.70.5

3-1) For Solaris 11

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.4 -e 192.168.70.6 -t net0,net1
# /opt/FJSVhanet/usr/sbin/hanetconfig copy -n sha0,sha1 -i 192.168.70.5

Note

Ensure that the physical IP address specified using option '-e' is the same IP address configured in /etc/hostname.fjgi0 with the ipadm(1M) command.

4) Setting up the HUB monitoring function

# /opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b off
# /opt/FJSVhanet/usr/sbin/hanetpoll copy -n sha0,sha1

5) Setting up the Standby patrol monitoring function

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha2 -m p -t sha0

6) Activation of virtual interface

# /opt/FJSVhanet/usr/sbin/strhanet

7) Starting the HUB monitoring function

# /opt/FJSVhanet/usr/sbin/hanetpoll on
