B.1.1 Example of the Single system

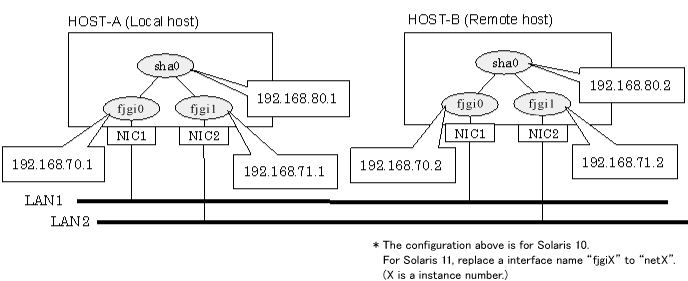

This section describes an example configuration procedure of the network shown in the diagram below.

[HOST-A]

1) Setting up the system

1-1) Define IP addresses and hostnames in /etc/inet/hosts file.

192.168.70.1    host11  # HOST-A Physical IP (1)
192.168.71.1    host12  # HOST-A Physical IP (2)
192.168.80.1    hosta   # HOST-A Virtual IP
192.168.70.2    host21  # HOST-B Physical IP (1)
192.168.71.2    host22  # HOST-B Physical IP (2)
192.168.80.2    hostb   # HOST-B Virtual IP

1-2) For Solaris 10
Write the hostnames defined above in /etc/hostname.fjgi0 file and /etc/hostname.fjgi1 file. If a file does not exist, create a new file.

Contents of /etc/hostname.fjgi0
host11
Contents of /etc/hostname.fjgi1
host12

1-2) For Solaris 11
Set the host by the interface used with the ipadm(1M) command and also by the host name defined above.

Interface net0

# /usr/sbin/ipadm create-ip net0
# /usr/sbin/ipadm create-addr -T static -a host11/24 net0/v4

Interface net1

# /usr/sbin/ipadm create-ip net1
# /usr/sbin/ipadm create-addr -T static -a host12/24 net1/v4

1-3) Define the subnet mask in /etc/inet/netmasks file.

192.168.70.0    255.255.255.0
192.168.71.0    255.255.255.0
192.168.80.0    255.255.255.0

2) Reboot (For Solaris 10)

Run the following command to reboot the system. Make sure fjgi0 and fjgi1 are enabled as IPv4 interfaces after rebooting the system.

# /usr/sbin/shutdown -y -i6 -g0

3) Creation of virtual interface

3-1) For Solaris 10

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m t -i 192.168.80.1 -t fjgi0,fjgi1

3-1) For Solaris 11

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m t -i 192.168.80.1 -t net0,net1

4) Activation of virtual interface

# /opt/FJSVhanet/usr/sbin/strhanet

[HOST-B]
