In GS/SURE linkage mode, the ping command is issued against the IP address of the actual interface of the remote system at regular interval. If a transfer path failure is detected or a failure notification is received from the remote system, the route is switched and a reporting message will be output. Then, communication is continued using other transfer path.
This function is used exclusively for GS/SURE linkage mode. In Fast switching mode, when the virtual interface activates, the process will be executed automatically. NIC switching mode is not capable of using this function.

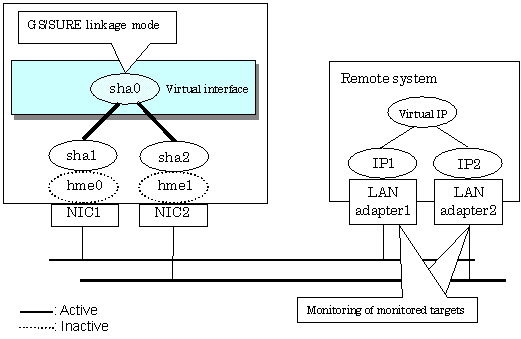

Figure 2.29 Remote system monitoring function
