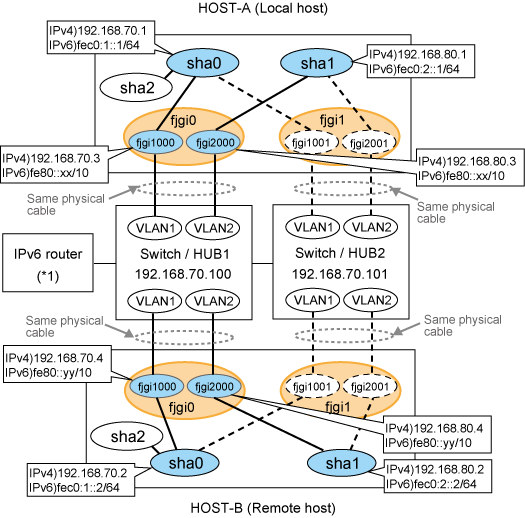

This section describes an example configuration procedure of the network shown in the diagram below.
The xx, yy in the figure below are assigned automatically by the automatic address configuration.
If the Standby patrol monitoring function is not used, omit 6) in the procedure for setting up on each host.
Note
An example of configuring /etc/inet/ndpd.conf to use Solaris server as an IPv6 router is described below:
For details on /etc/inet/ndpd.conf, refer to the Solaris manual.
ifdefault AdvSendAdvertisements true # Every interface sends a router advertisement. prefix fec0:1::0/64 fjgi1000 # fjgi1000 sends Prefix "fec0:1::0/64". prefix fec0:2::0/64 fjgi2000 # fjgi2000 sends Prefix "fec0:2::0/64". |
[HOST-A]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file.
192.168.70.1 hosta # HOST-A Virtual IP 192.168.70.3 host71 # HOST-A Physical IP (Tagged VLAN interface) 192.168.80.1 hostb # HOST-A Virtual IP 192.168.80.3 host81 # HOST-A Physical IP (Tagged VLAN interface) 192.168.70.2 hostc # HOST-B Virtual IP 192.168.70.4 host72 # HOST-B Physical IP (Tagged VLAN interface) 192.168.80.2 hostd # HOST-B Virtual IP 192.168.80.4 host82 # HOST-B Physical IP (Tagged VLAN interface) 192.168.70.100 swhub1 # primary Switch/HUB IP 192.168.70.101 swhub2 # secondary Switch/HUB IP |
1-2) For Solaris 10
Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.fjgi1000
host71 |
Contents of /etc/hostname.fjgi2000
host81 |
1-2) For Solaris 11
Set the host by the interface used with the dladm(1M) command and the ipadm(1M) command and also by the host name defined above.
Interface fjgi1000
# /usr/sbin/dladm create-vlan -l fjgi0 -v 1 # /usr/sbin/ipadm create-ip fjgi1000 # /usr/sbin/ipadm create-addr -T static -a host71/24 fjgi1000/v4 |
Interface fjgi1001
# /usr/sbin/dladm create-vlan -l fjgi1 -v 1 |
Interface fjgi2000
# /usr/sbin/dladm create-vlan -l fjgi0 -v 2 # /usr/sbin/ipadm create-ip fjgi2000 # /usr/sbin/ipadm create-addr -T static -a host81/24 fjgi2000/v4 |
Interface fjgi2001
# /usr/sbin/dladm create-vlan -l fjgi1 -v 2 |
1-3) Define the subnet mask in /etc/inet/netmasks file.
192.168.70.0 255.255.255.0 192.168.80.0 255.255.255.0 |
1-4) For Solaris 10
Create /etc/hostname6.fjgi1000 and /etc/hostname6.fjgi2000 file as an empty file.
1-4) For Solaris 11
Set the interface to be used by using the ipadm(1M) command.
Interface fjgi1000
# /usr/sbin/ipadm create-addr -T addrconf fjgi1000/v6 |
Interface fjgi2000
# /usr/sbin/ipadm create-addr -T addrconf fjgi2000/v6 |
1-5) Define IP addresses and hostnames in /etc/inet/ipnodes file.
fec0:1::1 v6hosta1 # HOST-A Virtual IP(1) fec0:2::1 v6hosta2 # HOST-A Virtual IP(2) fec0:1::2 v6hostb1 # HOST-B Virtual IP(1) fec0:2::2 v6hostB2 # HOST-B Virtual IP(2) |
2) Creation of IPv4 virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.1 -e 192.168.70.3 -t fjgi1000,fjgi1001 /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha1 -m d -i 192.168.80.1 -e 192.168.80.3 -t fjgi2000,fjgi2001
Note
Ensure that the physical IP address specified using option '-e' is the same IP address configured in /etc/hostname.fjgi1000, in /etc/hostname.fjgi2000, or with the ipadm(1M) command.
3) Creation of IPv6 virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig copy inet6 -n sha0,sha0 -i fec0:1::1/64 /opt/FJSVhanet/usr/sbin/hanetconfig copy inet6 -n sha1,sha1 -i fec0:2::1/64
4) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b on
5) Setting up the HUB monitoring function (Synchronized switching)
/opt/FJSVhanet/usr/sbin/hanetpoll copy -n sha0,sha1
6) Setting up the Standby patrol monitoring function
Please define only one Standby patrol monitoring function.
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha2 -m p -t sha0
7) Reboot
Run the following command to reboot the system. Make sure fjgi1000 and fjgi2000 are enabled as IPv4/IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
[HOST-B]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file. Defined information is the same as for HOST-A.
1-2) For Solaris 10
Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.fjgi1000
host72 |
Contents of /etc/hostname.fjgi2000
host82 |
1-2) For Solaris 11
Set the host by the interface used with the dladm(1M) command and the ipadm(1M) command and also by the host name defined above.
Interface fjgi1000
# /usr/sbin/dladm create-vlan -l fjgi0 -v 1 # /usr/sbin/ipadm create-ip fjgi1000 # /usr/sbin/ipadm create-addr -T static -a host72/24 fjgi1000/v4 |
Interface fjgi1001
# /usr/sbin/dladm create-vlan -l fjgi1 -v 1 |
Interface fjgi2000
# /usr/sbin/dladm create-vlan -l fjgi0 -v 2 # /usr/sbin/ipadm create-ip fjgi2000 # /usr/sbin/ipadm create-addr -T static -a host82/24 fjgi2000/v4 |
Interface fjgi2001
# /usr/sbin/dladm create-vlan -l fjgi1 -v 2 |
1-3) Define the subnet mask in /etc/inet/netmasks file. Defined content is same as HOST-A.
1-4) For Solaris 10
Create /etc/hostname6.fjgi1000 and /etc/hostname6.fjgi2000 file as an empty file.
1-4) For Solaris 11
Set the interface to be used by using the ipadm(1M) command.
Interface fjgi1000
# /usr/sbin/ipadm create-addr -T addrconf fjgi1000/v6 |
Interface fjgi2000
# /usr/sbin/ipadm create-addr -T addrconf fjgi2000/v6 |
1-5) Define IP addresses and hostnames in /etc/inet/ipnodes file. Defined content is same as HOST-A.
2) Creation of IPv4 virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.2 -e 192.168.70.4 -t fjgi1000,fjgi1001 /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha1 -m d -i 192.168.80.2 -e 192.168.80.4 -t fjgi2000,fjgi2001
Note
Ensure that the physical IP address specified using option '-e' is the same IP address configured in /etc/hostname.fjgi1000, in /etc/hostname.2000, or with the ipadm(1M) command.
3) Creation of IPv6 virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig copy inet6 -n sha0,sha0 -i fec0:1::2/64 /opt/FJSVhanet/usr/sbin/hanetconfig copy inet6 -n sha1,sha1 -i fec0:2::2/64
4) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b on
5) Setting up the HUB monitoring function (Synchronized switching)
/opt/FJSVhanet/usr/sbin/hanetpoll copy -n sha0,sha1
6) Setting up the Standby patrol monitoring function
Please define only one Standby patrol monitoring function.
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha2 -m p -t sha0
7) Reboot
Run the following command to reboot the system. Make sure fjgi1000 and fjgi2000 are enabled as IPv4/IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
