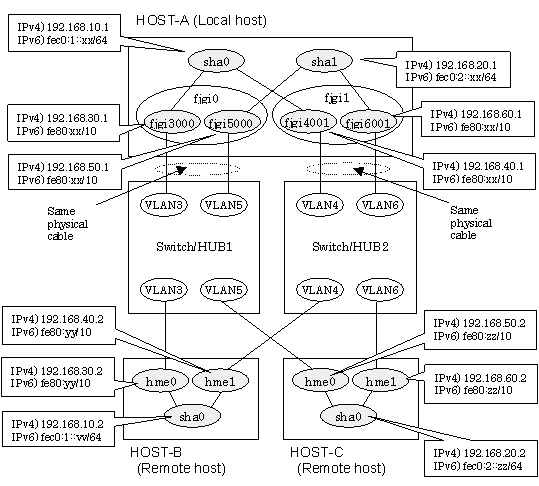

This section describes an example configuration procedure of the network shown in the diagram below.
The xx, yy and zz in the figure below are assigned automatically by the automatic address configuration.
[HOST-A]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file.
192.168.10.1 hosta1 # HOST-A Virtual IP 192.168.20.1 hosta2 # HOST-A Virtual IP 192.168.30.1 hosta3 # HOST-A Physical IP (Tagged VLAN interface) 192.168.40.1 hosta4 # HOST-A Physical IP (Tagged VLAN interface) 192.168.50.1 hosta5 # HOST-A Physical IP (Tagged VLAN interface) 192.168.60.1 hosta6 # HOST-A Physical IP (Tagged VLAN interface) 192.168.10.2 hostb1 # HOST-B Virtual IP 192.168.30.2 hostb3 # HOST-B Physical IP 192.168.40.2 hostb4 # HOST-B Physical IP 192.168.20.2 hostc2 # HOST-C Virtual IP 192.168.50.2 hostc5 # HOST-C Physical IP 192.168.60.2 hostc6 # HOST-C Physical IP |
1-2) For Solaris 10
Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.fjgi3000
hosta3 |
Contents of /etc/hostname.fjgi4001
hosta4 |
Contents of /etc/hostname.fjgi5000
hosta5 |
Contents of /etc/hostname.fjgi6001
hosta6 |
1-2) For Solaris 11
Set the host by the interface used with the dladm(1M) command and the ipadm(1M) command and also by the host name defined above.
Interface fjgi3000
# /usr/sbin/dladm create-vlan -l fjgi0 -v 3 # /usr/sbin/ipadm create-ip fjgi3000 # /usr/sbin/ipadm create-addr -T static -a hosta3/24 fjgi3000/v4 |
Interface fjgi4001
# /usr/sbin/dladm create-vlan -l fjgi1 -v 4 # /usr/sbin/ipadm create-ip fjgi4001 # /usr/sbin/ipadm create-addr -T static -a hosta4/24 fjgi4001/v4 |
Interface fjgi5000
# /usr/sbin/dladm create-vlan -l fjgi0 -v 5 # /usr/sbin/ipadm create-ip fjgi5000 # /usr/sbin/ipadm create-addr -T static -a hosta5/24 fjgi5000/v4 |
Interface fjgi6001
# /usr/sbin/dladm create-vlan -l fjgi1 -v 6 # /usr/sbin/ipadm create-ip fjgi6001 # /usr/sbin/ipadm create-addr -T static -a hosta6/24 fjgi6001/v4 |
1-3) Define the subnet mask in /etc/inet/netmasks file.
192.168.10.0 255.255.255.0 192.168.20.0 255.255.255.0 |
1-4) For Solaris 10
Create /etc/hostname6.fjgi3000, /etc/hostname6.fjgi4001, /etc/hostname6.fjgi5000 and /etc/hostname6.fjgi6001 files as an empty file.
1-4) For Solaris 11
Set the interface to be used by using the dladm(1M) command and the ipadm(1M) command.
Interface fjgi3000
# /usr/sbin/ipadm create-addr -T addrconf fjgi3000/v6 |
Interface fjgi4001
# /usr/sbin/ipadm create-addr -T addrconf fjgi4001/v6 |
Interface fjgi5000
# /usr/sbin/ipadm create-addr -T addrconf fjgi5000/v6 |
Interface fjgi6001
# /usr/sbin/ipadm create-addr -T addrconf fjgi6001/v6 |
1-5) Create /etc/inet/ndpd.conf file and set the followings:
ifdefault AdvSendAdvertisements true # Every interface sends a router advertisement. prefix fec0:1::0/64 sha0 # sha0 sends Prefix "fec0:1::0/64". prefix fec0:2::0/64 sha1 # sha1 sends Prefix "fec0:2::0/64". |
Note
In the Solaris server that runs Fast switching mode, configure two or more router as IPv6 router. If the IPv6 router breaks down, it cannot use site-local address to communicate. To prevent this, it is recommended to setup at least two IPv6 routers.
For details on /etc/inet/ndpd.conf, refer to the Solaris manual.
2) Reboot
Run the following command to reboot the system. Make sure fjgi3000, fjgi4001, fjgi5000 and fjgi6001 are enabled as IPv4/IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of IPv4 virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m t -i 192.168.10.1 -t fjgi3000,fjgi4001 /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha1 -m t -i 192.168.20.1 -t fjgi5000,fjgi6001
4) Creation of IPv6 virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha0 -m t -t fjgi3000,fjgi4001 /opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha1 -m t -t fjgi5000,fjgi6001
5) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
[HOST-B]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file. Defined information is the same as for HOST-A.
1-2) For Solaris 10
Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.hme0
hostb3 |
Contents of /etc/hostname.hme1
hostb4 |
1-2) For Solaris 11
Set the host by the interface used with the ipadm(1M) command and also by the host name defined above.
Interface hme0
# /usr/sbin/ipadm create-ip hme0 # /usr/sbin/ipadm create-addr -T static -a hostb3/24 hme0/v4 |
Interface hme1
# /usr/sbin/ipadm create-ip hme1 # /usr/sbin/ipadm create-addr -T static -a hostb4/24 hme1/v4 |
1-3) Define the subnet mask in /etc/inet/netmasks file. Defined content is same as HOST-A.
1-4) For Solaris 10
Create /etc/hostname6.hme0 and /etc/hostname6.hme1 files as an empty file.
1-4) For Solaris 11
Set the interface to be used by using the ipadm(1M) command.
Interface hme0
# /usr/sbin/ipadm create-addr -T addrconf hme0/v6 |
Interface hme1
# /usr/sbin/ipadm create-addr -T addrconf hme1/v6 |
1-5) Create /etc/inet/ndpd.conf file and set the followings:
ifdefault AdvSendAdvertisements true # Every interface sends a router advertisement. prefix fec0:1::0/64 sha0 # sha0 sends Prefix "fec0:1::0/64". |
2) Reboot
Run the following command to reboot the system. Make sure hme0 and hme1 are enabled as IPv4/IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m t -i 192.168.10.2 -t hme0,hme1 /opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha0 -m t -t hme0,hme1
4) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
[HOST-C]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file. Defined information is the same as for HOST-A.
1-2) For Solaris 10
Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.hme0
hostc5 |
Contents of /etc/hostname.hme1
hostc6 |
1-2) For Solaris 11
Set the host by the interface used with the ipadm(1M) command and also by the host name defined above.
Interface hme0
# /usr/sbin/ipadm create-ip hme0 # /usr/sbin/ipadm create-addr -T static -a hostc5/24 hme0/v4 |
Interface hme1
# /usr/sbin/ipadm create-ip hme1 # /usr/sbin/ipadm create-addr -T static -a hostc6/24 hme1/v4 |
1-3) Define the subnet mask in /etc/inet/netmasks file. Defined content is same as HOST-A.
1-4) For Solaris 10
Create /etc/hostname6.hme0 and /etc/hostname6.hme1 files as an empty file.
1-4) For Solaris 11
Set the interface to be used by using the ipadm(1M) command.
Interface hme0
# /usr/sbin/ipadm create-addr -T addrconf hme0/v6 |
Interface hme1
# /usr/sbin/ipadm create-addr -T addrconf hme1/v6 |
1-5) Create /etc/inet/ndpd.conf file and set the followings:
ifdefault AdvSendAdvertisements true # Every interface sends a router advertisement. prefix fec0:2::0/64 sha0 # sha0 sends Prefix "fec0:2::0/64". |
2) Reboot
Run the following command to reboot the system. Make sure hme0 and hme1 are enabled as IPv4/IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m t -i 192.168.20.2 -t hme0,hme1 /opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha0 -m t -t hme0,hme1
4) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
