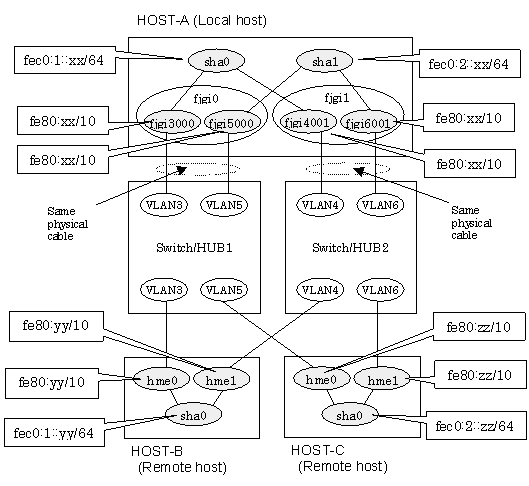

This section describes an example configuration procedure of the network shown in the diagram below.
The xx, yy and zz in the figure below are assigned automatically by the automatic address configuration.
[HOST-A]
1) Setting up the system
1-1) Create /etc/inet/ndpd.conf file and set the followings:
ifdefault AdvSendAdvertisements true # Every interface sends a router advertisement. prefix fec0:1::0/64 sha0 # sha0 sends Prefix "fec0:1::0/64". prefix fec0:2::0/64 sha1 # sha1 sends Prefix "fec0:2::0/64". |
Note
In the Solaris server that runs Fast switching mode, configure two or more router as IPv6 router. If the IPv6 router breaks down, it cannot use site-local address to communicate. To prevent this, it is recommended to setup at least two IPv6 routers.
For details on /etc/inet/ndpd.conf, refer to the Solaris manual.
1-2) For Solaris 10
Create /etc/hostname6.fjgi3000,/etc/hostname6.fjgi4001,/etc/hostname6.fjgi5000 and /etc/hostname6.fjgi6001 files as an empty file.
1-2) For Solaris 11
Set the interface to be used by using the dladm(1M) command and the ipadm(1M) command.
Interface fjgi3000
# /usr/sbin/dladm create-vlan -l fjgi0 -v 3 # /usr/sbin/ipadm create-ip fjgi3000 # /usr/sbin/ipadm create-addr -T addrconf fjgi3000/v6 |
Interface fjgi4001
# /usr/sbin/dladm create-vlan -l fjgi1 -v 4 # /usr/sbin/ipadm create-ip fjgi4001 # /usr/sbin/ipadm create-addr -T addrconf fjgi4001/v6 |
Interface fjgi5000
# /usr/sbin/dladm create-vlan -l fjgi0 -v 5 # /usr/sbin/ipadm create-ip fjgi5000 # /usr/sbin/ipadm create-addr -T addrconf fjgi5000/v6 |
Interface fjgi6001
# /usr/sbin/dladm create-vlan -l fjgi1 -v 6 # /usr/sbin/ipadm create-ip fjgi6001 # /usr/sbin/ipadm create-addr -T addrconf fjgi6001/v6 |
2) Reboot
Run the following command to reboot the system. Make sure fjgi3000, fjgi4001, fjgi5000 and fjgi6001 are enabled as IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha0 -m t -t fjgi3000,fjgi4001 /opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha1 -m t -t fjgi5000,fjgi6001
4) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
[HOST-B]
1) Setting up the system
1-1) Create /etc/inet/ndpd.conf file and set the followings:
ifdefault AdvSendAdvertisements true # Every interface sends a router advertisement. prefix fec0:1::0/64 sha0 # sha0 sends Prefix "fec0:1::0/64". |
1-2) For Solaris 10
Create /etc/hostname6.hme0 and /etc/hostname6.hme1 files as an empty file.
1-2) For Solaris 11
Set the interface to be used by using the ipadm(1M) command.
Interface hme0
# /usr/sbin/ipadm create-ip hme0 # /usr/sbin/ipadm create-addr -T addrconf hme0/v6 |
Interface hme1
# /usr/sbin/ipadm create-ip hme1 # /usr/sbin/ipadm create-addr -T addrconf hme1/v6 |
2) Reboot
Run the following command to reboot the system. Make sure hme0 and hme1 are enabled as IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha0 -m t -t hme0,hme1
4) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
[HOST-C]
1) Setting up the system
1-1) Create /etc/inet/ndpd.conf file and set the followings:
ifdefault AdvSendAdvertisements true # Every interface sends a router advertisement. prefix fec0:2::0/64 sha0 # sha0 sends Prefix "fec0:2::0/64". |
1-2) For Solaris 10
Create /etc/hostname6.hme0 and /etc/hostname6.hme1 files as an empty file.
1-2) For Solaris 11
Set the interface to be used by using the ipadm(1M) command.
Interface hme0
# /usr/sbin/ipadm create-ip hme0 # /usr/sbin/ipadm create-addr -T addrconf hme0/v6 |
Interface hme1
# /usr/sbin/ipadm create-ip hme1 # /usr/sbin/ipadm create-addr -T addrconf hme1/v6 |
2) Reboot
Run the following command to reboot the system. Make sure hme0 and hme1 are enabled as IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha0 -m t -t hme0,hme1
4) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
