B.4.13 Example of the Cluster system (Virtual NIC)

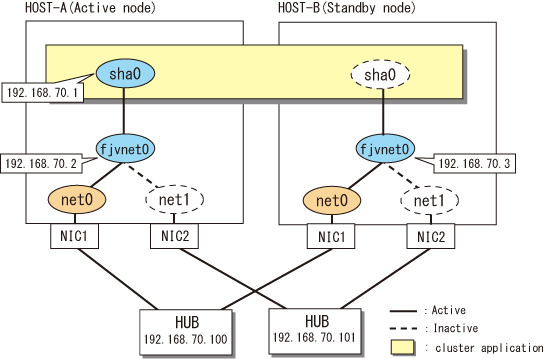

This section describes an example configuration procedure of the network shown in the diagram below. However, this manual only supports Solaris 11.1 or later enviroment.

For configuring the cluster system, refer to the Cluster system manual.
In this section, description of private LAN is omitted.
The dotted line indicates that the interface is inactive.

[HOST-A]

1) Setting up the system

1-1) Define IP addresses and hostnames in /etc/inet/hosts file.

192.168.70.1    hosta    # HOST-A/B Virtual IP (Take over IP address)
192.168.70.2    host11   # HOST-A Physical IP
192.168.70.3    host21   # HOST-B Physical IP
192.168.70.100  swhub1   # Primary HUB IP
192.168.70.101  swhub2   # Secondary HUB IP

1-2) Define the subnet mask in /etc/inet/netmasks file.

192.168.70.0    255.255.255.0

2) Creation of virtual NIC

2-1) Create virtual NIC using rvnetadm create command.

# /opt/FJSVrvnet/bin/rvnetadm create -n fjvnet0 -i net0,net1

2-2) Use rvnetadm start-observ command and enable network monitoring function of virtual NIC.

# /opt/FJSVrvnet/bin/rvnetadm start-observ

2-3) Set the host by the virtual NIC used with the ipadm(1M) command and also by the host name defined above.

# /usr/sbin/ipadm create-ip fjvnet0
# /usr/sbin/ipadm create-addr -T static -a host11/24 fjvnet0/v4

3) Creation of virtual interface

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.1 -e 192.168.70.2 -t fjvnet0

Note

Ensure that the physical IP address specified using option '-e' is the same physical IP address configured with the ipadm(1M) command.

4) Setting up the HUB monitoring function

# /opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101

5) Creation of takeover virtual interface

# /opt/FJSVhanet/usr/sbin/hanethvrsc create -n sha0

6) Starting the HUB monitoring function

# /opt/FJSVhanet/usr/sbin/hanetpoll on

[HOST-B]

1) Setting up the system

1-1) Define IP addresses and hostnames in /etc/inet/hosts file. Defined information is the same as for HOST-A.

1-2) Define the subnet mask in /etc/inet/netmasks file. Defined content is same as HOST-A.

2) Creation of virtual NIC

2-1) Create virtual NIC using rvnetadm create command.

# /opt/FJSVrvnet/bin/rvnetadm create -n fjvnet0 -i net0,net1

2-2) Use rvnetadm start-observ command and enable network monitoring function of virtual NIC.

# /opt/FJSVrvnet/bin/rvnetadm start-observ

2-3) Set the host by the virtual NIC used with the ipadm(1M) command and also by the host name defined above.

# /usr/sbin/ipadm create-ip fjvnet0
# /usr/sbin/ipadm create-addr -T static -a host21/24 fjvnet0/v4

3) Creation of virtual interface

# /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.1 -e 192.168.70.3 -t fjvnet0

Note

Ensure that the physical IP address specified using option '-e' is the same physical IP address configured with the ipadm(1M) command.

4) Setting up the HUB monitoring function

# /opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101

5) Creation of takeover virtual interface

# /opt/FJSVhanet/usr/sbin/hanethvrsc create -n sha0

6) Starting the HUB monitoring function

# /opt/FJSVhanet/usr/sbin/hanetpoll on

[Configuration by RMS Wizard]

1) Configuration of cluster environment

After completing step 6) of both HOST-A and HOST-B, connect to the administration server using RMS Wizard, then setup the cluster environment.
To create Gls resource, select the SysNode for HOST-A and HOST-B. Once Gls is created, register it on the cluster application.
When registering on the cluster application, select the SysNode compliant with HOST-A and HOST-B in the order of operation node followed by standby node. Then, register the takeover address "192.168.70.1".

2) Starting cluster application

After completing the configuration, start the cluster application to activate the takeover virtual interface on the operation node.
