The first step is to start Web-based Admin View by entering the following URL in a java-enabled browser:
http://Management_Server:8081/
In this example, if fuji2 is a management server, enter the following:
http://fuji2:8081/The Web-Based Admin View main window below is displayed.

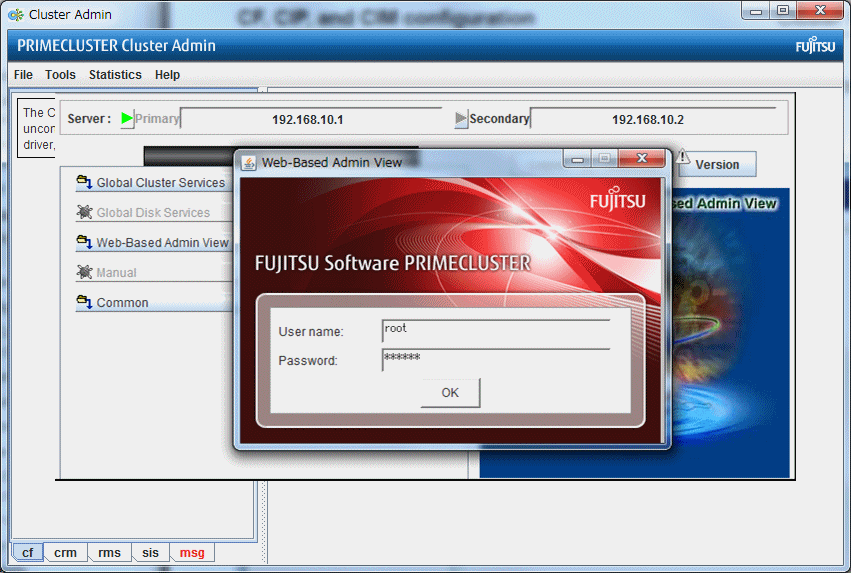

Figure 4.1 Main window
Enter a user name in the User name field and the password and click on [OK].
Use the appropriate privilege level while logging in. There are three privilege levels: root privileges, administrative privileges, and operator privileges.
With the root privileges, you can perform all actions including configuration, administration and viewing tasks. With administrative privileges, you can view as well as execute commands but cannot make configuration changes.
Point
In this example we are using root and not creating user groups.
Click on the [Global Cluster Services] button and the screen below is displayed.
Figure 4.2 Cluster Admin start-up window
Click on the [Global Cluster Services] button and then the node selection screen below is displayed.
Figure 4.3 Initial connection choice window
Select a node and click [Ok]. The Cluster Admin main window below is displayed.
Figure 4.4 Cluster Admin main window
By default, the cf tab is selected and the CF main window is presented. Use the appropriate privilege level while logging in. The tab for RMS will appear as rms&pcs when PCS is installed and as rms in configurations where PCS is not installed.
Point
Both of the terms UP and Online are represented by green circles. These terms describe the same state and are interchangeable.
