G.3.11 For Deploying Server Load Balancers (BIG-IP LTM Series)

The default model configuration assumed by a sample script is given below:

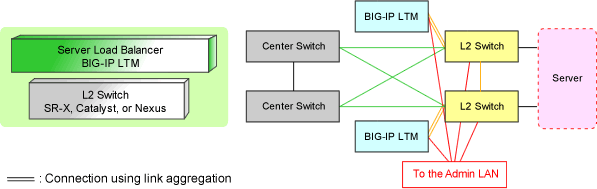

Figure G.10 Standard Model Configurations of Sample Scripts (Server Load Balancers:BIG-IP LTM Series)

Listed below are sample ruleset names provided by Resource Orchestrator:

For the BIG-IP LTM series

SLB_with_SSL-ACC--BIGIP2

For systems that use the BIG-IP LTM series as server load balancers (with an SSL accelerator)

For Public LANs and Unit Synchronization
mytrunk: Connection using Link aggregation
- 1.1
- 1.2
For the Admin LAN
mgmt

SLB_without_SSL-ACC--BIGIP2

For systems that use the BIG-IP LTM series for server load balancers (without SSL accelerator).

For Public LANs and Unit Synchronization
mytrunk: Connection using Link aggregation
- 1.1
- 1.2
For the Admin LAN
mgmt
