This section explains how to collect and delete cloning images.
When the OS is Linux
Delete the line starting with "HWADDR=" defined in "/etc/sysconfig/network-scripts/ifcfg-ethX (the X represents a number)", before collecting images.
On Redhat Enterprise Linux 6, the information for the MAC address is also registered in /etc/udev/rules.d/70-persistent-net.rules.
Delete the virtual network interface definition information for /etc/udev/rules.d/70-persistent-net.rules, before collecting images.
When the OS is Windows
Resource Orchestrator collects cloning images using Sysprep.
When using MAK license authentication for activation in the following OSs, Sysprep can be executed a maximum of three times.
Windows Server 2008
Windows Server 2008 R2
Windows Vista
Windows 7
Cloning images cannot be collected four times or more from L-Servers to which cloning images have been deployed.
Collect cloning images by creating a dedicated L-Server for cloning image collection.
Operation Methods for Cloning Image Collection
Use the following methods to collect cloning images.

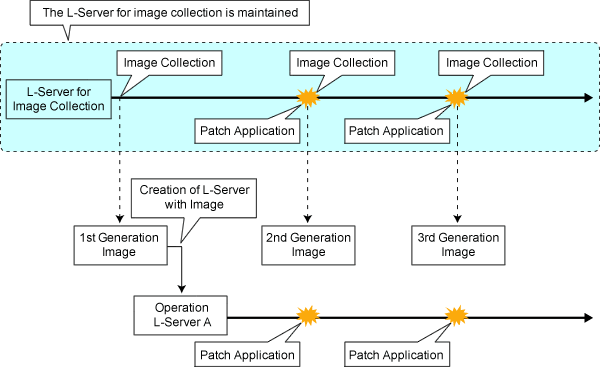

Figure 17.1 When not Changing the Primary Server (1)

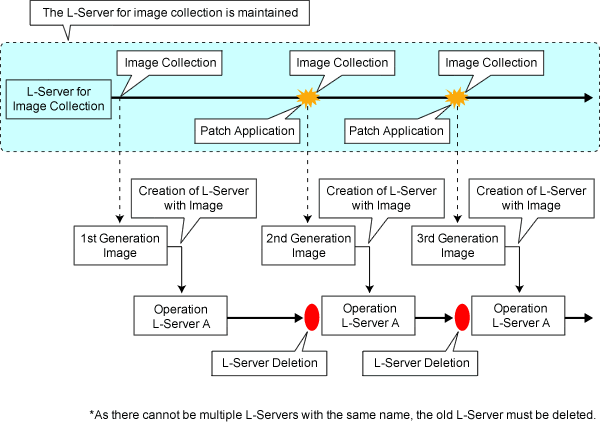

Figure 17.2 When not Changing the Primary Server (2)
