Clicking on the Tools icon and selecting "Display Label List" from the drop-down list displays the [Label List] dialog shown below.
When applications are defined with labels, this list can provide a quick overview of the applications running on each server.

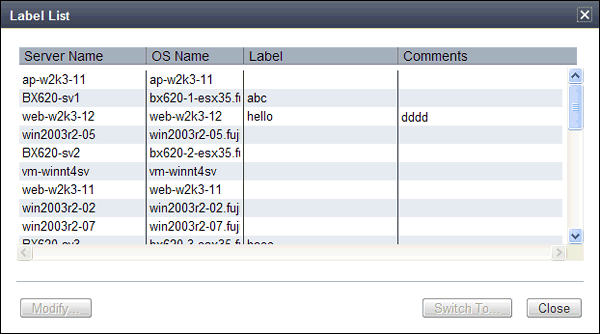

Figure 4.8 Label List
Contents of the Label List
The [Label List] dialog displays server names, OS names, labels, and comments for each server.
Clicking [Switch To] after selecting a server from the list will switch the view to the blade panel and display the selected server within its enclosing chassis.
Editing Labels and Comments
This function is only available to privileged users.
General users are only able to consult labels and comments.
Privileged user
In the [Label List] dialog, select a server and click [Modify]. The [Modify Server Settings] dialog is displayed.
The label and comment of the selected server can be edited directly from the [Modify Server Settings] dialog.
Enter the following items:
Enter up to 32 alphanumeric characters or symbols (ASCII characters 0x20 to 0x7e).
Enter up to 256 alphanumeric characters or symbols (ASCII characters 0x20 to 0x7e).
Note
New lines are counted as two characters.
Additional information such as OS name, server name (for a physical OS, the physical server name, for a VM guest, the VM guest name), and IP address are displayed to help identify the selected server.
Clicking [Save] saves the modified label and comment into the manager's database. The saved content is then updated and displayed in BladeViewer.
General user
If logged in as a general user, [Show] is displayed in place of [Modify] in the [Label List] dialog.
Clicking [Show] displays the [Server Properties] dialog, but does not allow editing of labels or comments.
