This section provides an overview of NetworkViewer.
NetworkViewer is a GUI that can display the connections of a physical network consisting of servers, LAN switches, and LAN switch blades.

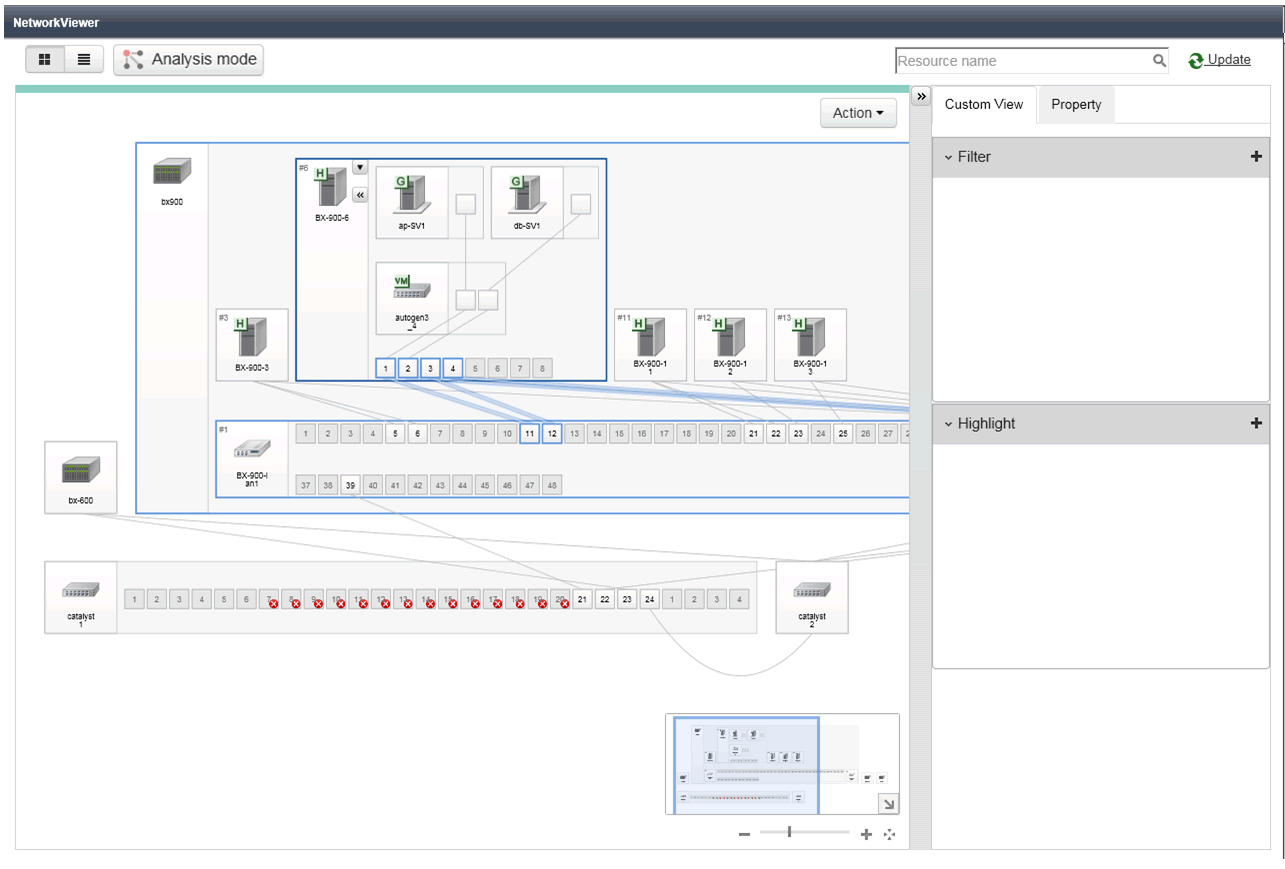

Figure 13.1 NetworkViewer
The operations which can be performed using NetworkViewer are shown below.
Display of network configurations
The following network configurations managed by Resource Orchestrator are displayed.
Network configuration of physical and virtual servers (including virtual switches and VM guests)
Monitoring of resource statuses
The following information for resources managed in Resource Orchestrator is displayed.
Statuses of network links between all resources
VLAN configuration affecting each physical and virtual server
Resource information
Analysis and forecasting of the scope affected by device failure
The following operations can be performed on the resources managed by Resource Orchestrator.
Saving influence scope data at an arbitrary point of time
Viewing the scope of impact on communication routes other than failed devices, based on influence scope data
Forecasting of the scope of impact on communication routes other than those using failed devices, which can be performed by editing influence scope data
Exporting and importing of influence scope data
Information
The NetworkViewer uses the Web browser's standard fonts and is designed to be viewed in a window of 1200 by 800 pixels or larger. When using a monitor with a higher resolution than this, it is recommended to enlarge the screen size. If the Web browser is resized by a significant amount, the display quality may deteriorate.
NetworkViewer is updated automatically every ten seconds.
To update Network links manually, click the update button.
When the Ethernet Fabric switch (Converged Fabric) that contains registered LAN switch blade PY CB Eth Switch 10/40Gb 18/8+2 in the hardware component is registered, the name of the switch blade is changed to the port name which corresponds to the Ethernet Fabric switch (Converged Fabric).
Moreover, when either port is selected, the port which corresponds to the other LAN switch is selected.
