3.4.3 Virtual Adapter Settings

This section describes how to set a virtual adapter, assuming the following criteria:

• Virtual adapter: sha0

• Physical adapters: Ethernet 1, Ethernet 2

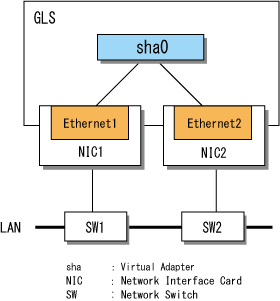

Figure 3.7 Virtual Adapter Settings

Use the hanetconfig command to make virtual adapter settings. Note that you must be a member of the Administrators group to execute hanetconfig.

1. Create the virtual adapter sha0 comprised of the physical adapters Ethernet 1 and Ethernet 2 by executing hanetconfig with the create subcommand.

   > hanetconfig create -n sha0 -t "Ethernet 1","Ethernet 2"
   FJSVhanet: INFO: 00000: The command ended normally.

   Note

   Deactivate all virtual adapters by executing the stphanet command before adding new adapters. For more details, refer to "6.2.8 stphanet."

2. Check that the settings are correct by executing the print subcommand of the hanetconfig command.

   > hanetconfig print
    Name     VID  Adapters
   +--------+----+----------------------------------------------------------------+
    sha0     ---- Ethernet 1, Ethernet 2

   Point

   • Repeat steps 1 and 2 for each virtual adapter that you create.

   • The physical adapter that you specify first is usually first used as the operational adapter.
