4.4.2 Alert List (for Each Chart)

Use either of the following methods to display an Alert list (for each chart):

• Click the alert icon () that is displayed in each chart.

• Select Show relational alerts from the [Show function] menu of each chart.

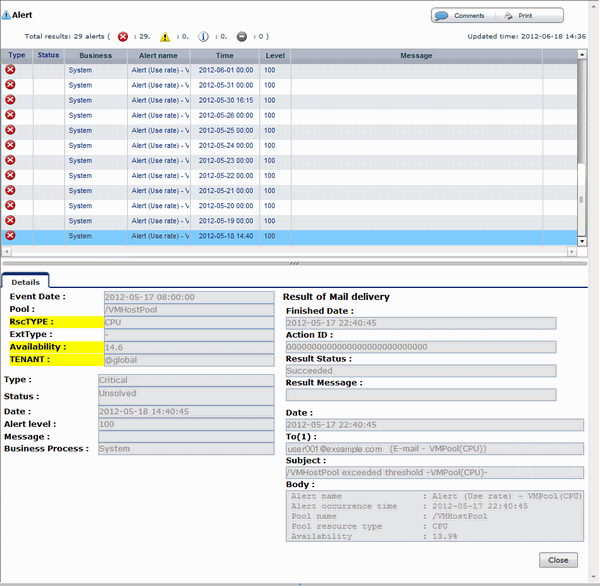

Figure 4.2 Alert List (for Each Chart)

The table below explains the buttons at the top right of the Alert list window.

Button	Description
Comments	The Comment dialog box will be displayed. Adds a comment on an alert selected from the Alert list. Allows a history of past comments to be viewed. In addition, changes the status of an alert to resolve in accordance with the addition of the comment.
Print	Outputs an image of the Alert list.

The table below explains the tab at the bottom of the Alert list window.

Tab	Description
Details	Displays detailed information on an alert selected from the Alert list. The background of the attributes specified as the alert conditions will be displayed in yellow. Refer to "B.1.3 Customizing Threshold Values" in the "Setup Guide CE" for information on setting conditions.
