Virtual machine instances are automatically deployed after approval is received for the request for addition made using the Cloud Management Portal. However, RDBs and SLBs are not automatically deployed after approval is received.

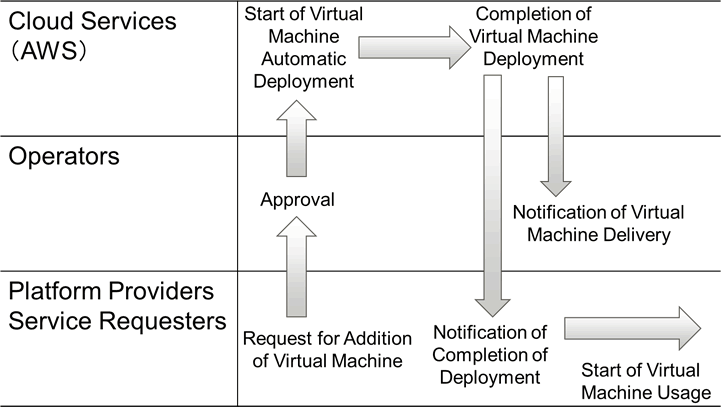

Figure A.1 Startup Procedure for Operation of Virtual Machines
If an RDB or SLB is requested at the same time as a virtual machine, deployment of the RDB or SLB is completed after an operator sets up the RDB or SLB environments using the cloud portal (AWS console).
After that, operators notify the service requester belonging to platform providers that the deployment of the RDB or SLB is complete, and platform providers are able to start operating the RDB or SLB.

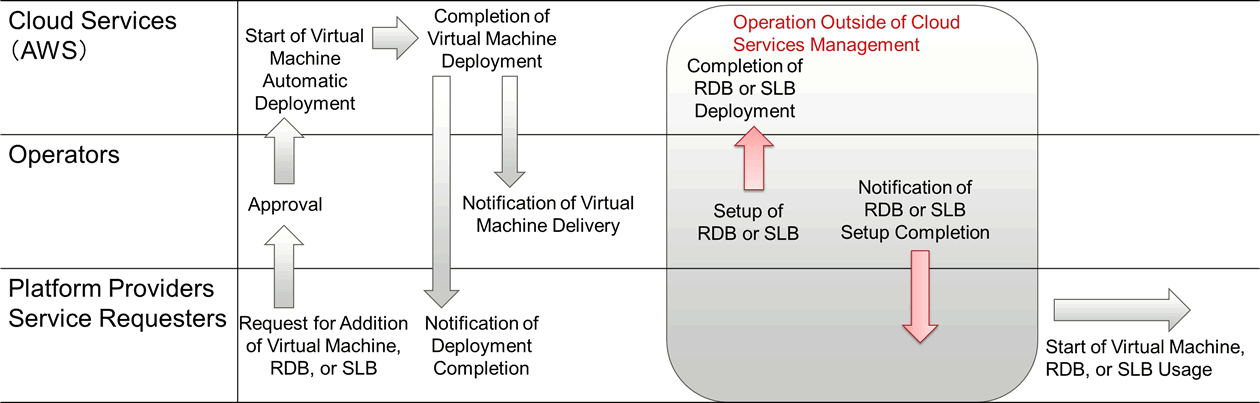

Figure A.2 Startup Procedure for Operation of Virtual Machines, RDBs and SLBs
