This chapter provides an overview of this product.
This product provides the disaster recovery function which allows continuation of operations on a backup site when a disaster strikes a cloud environment which is managed using FUJITSU Software ServerView Resource Orchestrator Cloud Edition.
This product provides simple and highly reliable Disaster Recovery, by exporting the following information that Resource Orchestrator Cloud Edition manager handles from the primary site and importing it to the backup site.
L-Platform Templates
Software Information
Image Information
Segment Information
L-Platform Configuration Information
Resource Information
L-Servers
L-Server Templates
Tenants
Resource Folders
Image Resources
Users
User Groups
Network Resources
Address set resources
Resource Pools
Execution Information of Sample Scripts
Accounting Information
Metering Logs
Usage Charges
In order to recover the cloud environment on the backup site, copy the primary site storage to the backup site, using the replication functions of the storage units.
Overview of the Disaster Recovery Environment
The overview of the Disaster Recovery environment is as given below.

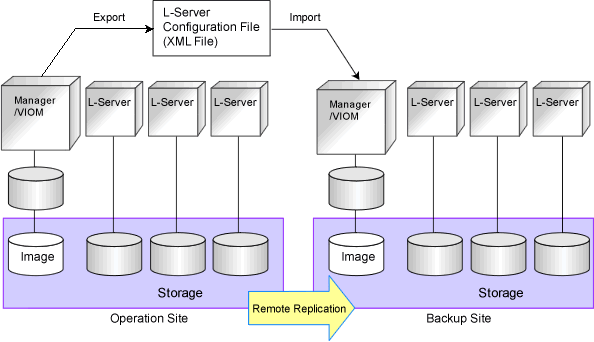

Figure 1.1 Overview of the Disaster Recovery Environment
For details on the design of the Disaster Recovery environment, refer to "Chapter 2 Design".
For details on the installation of the Disaster Recovery environment, refer to "Chapter 3 Installation".
For details on the operation of the Disaster Recovery environment, refer to "Chapter 4 Operation".
