This section explains the system configuration necessary when using RHEL-KVM as server virtualization software.
Example of System Configuration
An example system configuration using RHEL-KVM is given below.

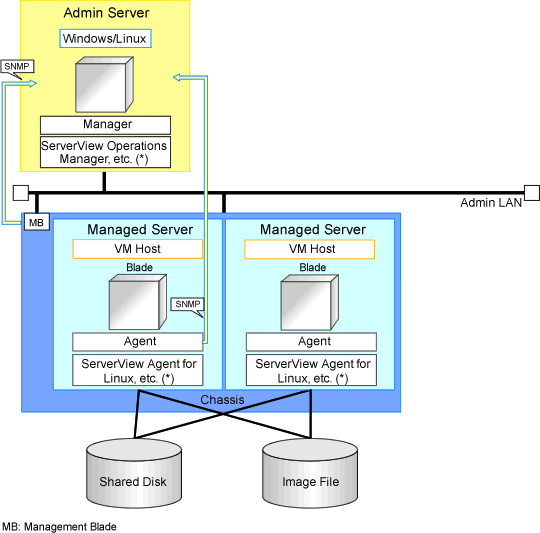

Figure E.16 System Configuration Example Using RHEL-KVM
* Note: For details on required software, refer to "2.4.2.4 Required Software".

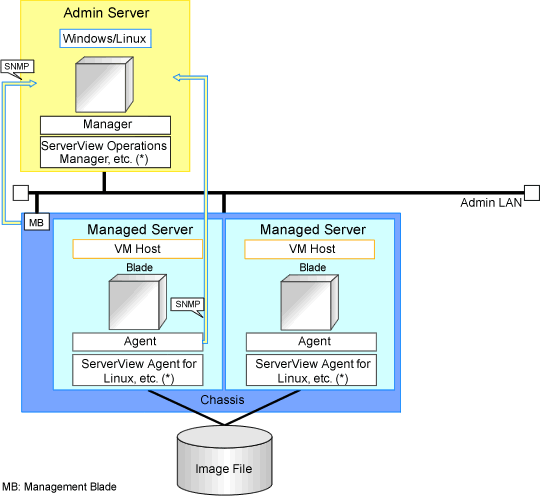

Figure E.17 System Configuration Example Using RHEL-KVM (When Using a NAS Configuration)
* Note: For details on required software, refer to "2.4.2.4 Required Software".
Figure E.18 System Configuration Example Using RHEL-KVM (When Using Both of the Above Configurations)
* Note: For details on required software, refer to "2.4.2.4 Required Software".
Network Configuration Example
An example network configuration using RHEL-KVM is given below:

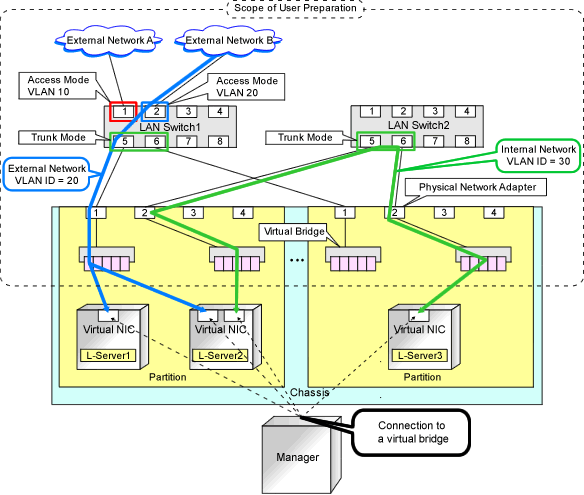

Figure E.19 Virtual Bridge Settings Using Network Resources
L-Server Creation Procedure
The procedure for creating L-Servers is shown below.

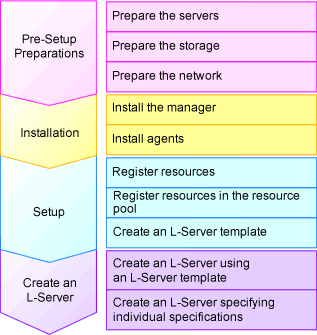

Figure E.20 Resource Orchestrator Setup Procedure
For details on pre-setup preparations, refer to "E.5 RHEL-KVM".
For details on how to install Resource Orchestrator, refer to "Chapter 2 Installation" in the "Setup Guide CE".
For details on setup, refer to "C.6 RHEL-KVM" in the "Setup Guide CE".
For details on how to create an L-Server, refer to "C.6.6 L-Server Creation" in the "Setup Guide CE".
