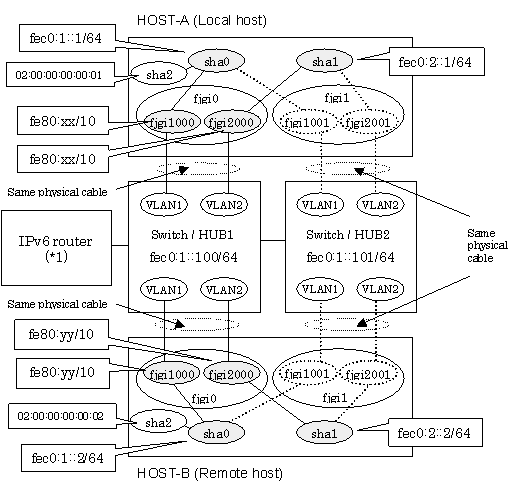

This section describes an example configuration procedure of the network shown in the diagram below.
The xx, yy in the figure below are assigned automatically by the automatic address configuration.
If the Standby patrol monitoring function is not used, omit 5) in the procedure for setting up on each host.
Note
An example of configuring /etc/inet/ndpd.conf to use Solaris server as an IPv6 router is described below:
For details on /etc/inet/ndpd.conf, refer to the Solaris manual.
ifdefault AdvSendAdvertisements true # Every interface sends a router advertisement. prefix fec0:1::0/64 fjgi1000 # fjgi1000 sends Prefix "fec0:1::0/64". prefix fec0:2::0/64 fjgi2000 # fjgi2000 sends Prefix "fec0:2::0/64". |
[HOST-A]
1) Setting up the system
1-1) Create /etc/hostname6.fjgi1000 and /etc/hostname6.fjgi2000 file as an empty file.
1-2) Define IP addresses and hostnames in /etc/inet/ipnodes file.
fec0:1::1 v6hosta1 # HOST-A Virtual IP(1) fec0:2::1 v6hosta2 # HOST-A Virtual IP(2) fec0:1::2 v6hostb1 # HOST-B Virtual IP(1) fec0:2::2 v6hostb2 # HOST-B Virtual IP(2) fec0:1::100 swhub1 # primary HUB IP fec0:1::101 swhub2 # secondary HUB IP |
2) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha0 -m d -i fec0:1::1/64 -t fjgi1000,fjgi1001 /opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha1 -m d -i fec0:2::1/64 -t fjgi2000,fjgi2001
3) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p fec0:1::100,fec0:1::101 -b on
4) Setting up the HUB monitoring function (Synchronized switching)
/opt/FJSVhanet/usr/sbin/hanetpoll copy -n sha0,sha1
5) Setting up the Standby patrol monitoring function
Please define only one Standby patrol monitoring function.
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha2 -m p -a 02:00:00:00:00:01 -t sha0
6) Reboot
Run the following command to reboot the system. Make sure fjgi1000 and fjgi2000 are enabled as IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
[HOST-B]
1) Setting up the system
1-1) Create /etc/hostname6.fjgi1000 and /etc/hostname6.fjgi2000 file as an empty file.
1-2) Define IP addresses and hostnames in /etc/inet/ipnodes file. Defined information is the same as for HOST-A.
2) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha0 -m d -i fec0:1::2/64 -t fjgi1000,fjgi1001 /opt/FJSVhanet/usr/sbin/hanetconfig create inet6 -n sha1 -m d -i fec0:2::2/64 -t fjgi2000,fjgi2001
3) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p fec0:1::100,fec0:1::101 -b on
4) Setting up the HUB monitoring function (Synchronized switching)
/opt/FJSVhanet/usr/sbin/hanetpoll copy -n sha0,sha1
5) Setting up the Standby patrol monitoring function
Please define only one Standby patrol monitoring function.
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha2 -m p -a 02:00:00:00:00:02 -t sha0
6) Reboot
Run the following command to reboot the system. Make sure fjgi1000 and fjgi2000 are enabled as IPv6 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
