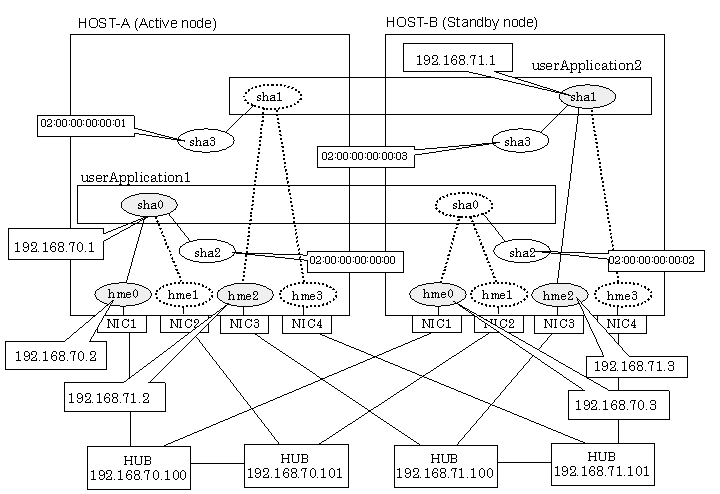

This section describes an example configuration procedure of the network shown in the diagram below.
For configuring the cluster system, refer to the Cluster system manual.
In this section, description of private LAN is omitted.
The dotted line indicates that the interface is inactive.
If the Standby patrol monitoring function is not used, omit 5) and 8) in the procedure for setting up on each host.
[HOST-A]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file.
192.168.70.1 hosta # HOST-A/B Virtual IP (Takeover IP1) 192.168.70.2 host11 # HOST-A Physical IP (1) 192.168.70.3 host21 # HOST-B Physical IP (1) 192.168.71.1 hostb # HOST-A/B Virtual IP (Takeover IP2) 192.168.71.2 host12 # HOST-A Physical IP (2) 192.168.71.3 host22 # HOST-B Physical IP (2) 192.168.70.100 swhub1 # Primary HUB IP (1) 192.168.70.101 swhub2 # Secondary HUB IP (1) 192.168.71.100 swhub3 # Primary HUB IP (2) 192.168.71.101 swhub4 # Secondary HUB IP (2) |
1-2) Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.hme0
host11 |
Contents of /etc/hostname.hme2
host12 |
1-3) Define the subnet mask in /etc/inet/netmasks file.
192.168.70.0 255.255.255.0 192.168.71.0 255.255.255.0 |
2) Reboot
Run the following command to reboot the system. Make sure hme0 and hme2 are enabled as IPv4 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.1 -e 192.168.70.2 -t hme0,hme1 /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha1 -m d -i 192.168.71.1 -e 192.168.71.2 -t hme2,hme3
Note
Ensure that the physical IP address specified using option '-e' is the same IP address configured in /etc/hostname.hme0 and /etc/hostname.hme2.
4) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b off /opt/FJSVhanet/usr/sbin/hanetpoll create -n sha1 -p 192.168.71.100,192.168.71.101 -b off
5) Setting up the Standby patrol monitoring function
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha2 -m p -a 02:00:00:00:00:00 -t sha0 /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha3 -m p -a 02:00:00:00:00:01 -t sha1
6) Creation of takeover virtual interface
/opt/FJSVhanet/usr/sbin/hanethvrsc create -n sha0 /opt/FJSVhanet/usr/sbin/hanethvrsc create -n sha1
7) Starting the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll on
8) Starting the Standby patrol monitoring function
/opt/FJSVhanet/usr/sbin/strptl -n sha2 /opt/FJSVhanet/usr/sbin/strptl -n sha3
[HOST-B]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file. Defined information is the same as for HOST-A.
1-2) Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.hme0
host21 |
Contents of /etc/hostname.hme2
host22 |
1-3) Define the subnet mask in /etc/inet/netmasks file. Defined content is same as HOST-A.
2) Reboot
Run the following command to reboot the system. Make sure hme0 and hme2 are enabled as IPv4 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m d -i 192.168.70.1 -e 192.168.70.3 -t hme0,hme1 /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha1 -m d -i 192.168.71.1 -e 192.168.71.3 -t hme2,hme3
Note
Ensure that the physical IP address specified using option '-e' is the same IP address configured in /etc/hostname.hme0 and /etc/hostname.hme2.
4) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b off /opt/FJSVhanet/usr/sbin/hanetpoll create -n sha1 -p 192.168.71.100,192.168.71.101 -b off
5) Setting up the Standby patrol monitoring function
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha2 -m p -a 02:00:00:00:00:02 -t sha0 /opt/FJSVhanet/usr/sbin/hanetconfig create -n sha3 -m p -a 02:00:00:00:00:03 -t sha1
6) Creation of takeover virtual interface
/opt/FJSVhanet/usr/sbin/hanethvrsc create -n sha0 /opt/FJSVhanet/usr/sbin/hanethvrsc create -n sha1
7) Starting the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll on
8) Starting the Standby patrol monitoring function
/opt/FJSVhanet/usr/sbin/strptl -n sha2 /opt/FJSVhanet/usr/sbin/strptl -n sha3
[Configuration by RMS Wizard]
After completing step 8) of both HOST-A and HOST-B, connect to the administration server using RMS Wizard, then setup the cluster environment.
To create Gls resources, select the SysNode compliant with HOST-A and HOST-B. Once Gls is created, register the two Gls resources on the userApplication.
When registering on the userApplication, select the SysNode compliant with HOST-A and HOST-B in the order of operation node followed by standby node. Then, register the takeover address "192.168.70.1" and "192.168.71.1".
After completing the configuration, start the userApplication to activate the takeover virtual interface on the operation node.
