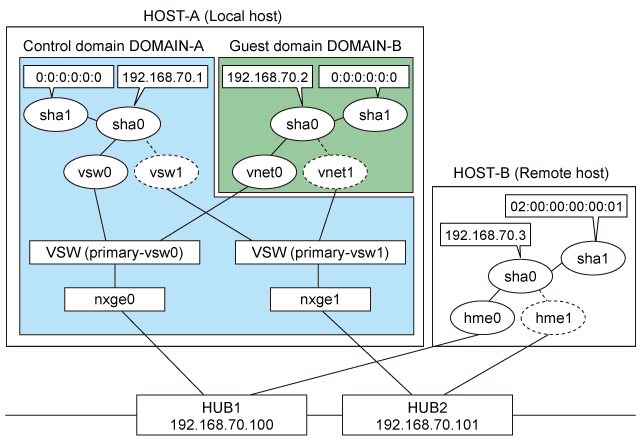

This section describes an example configuration procedure of the network shown in the diagram below.
If the Standby patrol monitoring function is not used, omit 5) in the procedure for setting up on each host.
[HOST-A: DOMAIN-A]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file.
192.168.70.1 domaina # HOST-A Virtual IP of DOMAIN-A 192.168.70.2 domainb # HOST-A Virtual IP of DOMAIN-B 192.168.70.3 hostb # Virtual IP of HOST-B 192.168.70.100 swhub1 # primary HUB IP 192.168.70.101 swhub2 # secondary HUB IP |
1-2) Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.vsw0
domaina |
1-3) Define the subnet mask in /etc/inet/netmasks file.
192.168.70.0 255.255.255.0 |
2) Reboot
Run the following command to reboot the system. Make sure vsw0 are enabled as IPv4 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m e -i 192.168.70.1 -t vsw0,vsw1
Note
Ensure that the physical IP address specified using option '-i' is the same IP address configured in /etc/hostname.vsw0.
4) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b off
5) Setting up the Standby patrol monitoring function
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha1 -m p -a 0:0:0:0:0:0 -t sha0
Information
When multiplexing the virtual NIC (vsw and vnet) in the LDoms environment, specify 0:0:0:0:0:0 to the MAC address of the standby patrol. Therefore, the virtual MAC address assigned to the virtual NIC by the standby patrol will be used.
6) Change the method of deactivating the standby interface
/opt/FJSVhanet/usr/sbin/hanetparam -d plumb
7) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
8) Starting the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll on
[HOST-A DOMAIN-B]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file. Defined information is the same as for HOST-A.
1-2) Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.vnet0
domainb |
1-3) Define the subnet mask in /etc/inet/netmasks file. Defined content is same as HOST-A zone0.
2) Reboot
Run the following command to reboot the system. Make sure vnet0 are enabled as IPv4 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m e -i 192.168.70.2 -t vnet0,vnet1
Note
Ensure that the physical IP address specified using option '-i' is the same IP address configured in /etc/hostname.vnet0.
4) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b off
5) Setting up the Standby patrol monitoring function
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha1 -m p -a 0:0:0:0:0:0 -t sha0
Information
When multiplexing the virtual NIC (vsw and vnet) in the LDoms environment, specify 0:0:0:0:0:0 to the MAC address of the standby patrol. Therefore, the virtual MAC address assigned to the virtual NIC by the standby patrol will be used.
6) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
7) Starting the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll on
[HOST-B]
1) Setting up the system
1-1) Define IP addresses and hostnames in /etc/inet/hosts file. Defined information is the same as for HOST-A DOMAIN-A.
1-2) Write the hostnames defined above in /etc/hostname."interface-name" files. If a file does not exist, create a new file.
Contents of /etc/hostname.hme0
hostb |
1-3) Define the subnet mask in /etc/inet/netmasks file. Defined content is same as HOST-A.
2) Reboot
Run the following command to reboot the system. Make sure hme0 are enabled as IPv4 interfaces after rebooting the system.
/usr/sbin/shutdown -y -i6 -g0
3) Creation of virtual interface
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha0 -m e -i 192.168.70.3 -t hme0,hme1
Note
Ensure that the physical IP address specified using option '-e' is the same IP address configured in /etc/hostname.hme0.
4) Setting up the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll create -n sha0 -p 192.168.70.100,192.168.70.101 -b off
5) Setting up the Standby patrol monitoring function
/opt/FJSVhanet/usr/sbin/hanetconfig create -n sha1 -m p -a 02:00:00:00:00:01 -t sha0
6) Activation of virtual interface
/opt/FJSVhanet/usr/sbin/strhanet
7) Starting the HUB monitoring function
/opt/FJSVhanet/usr/sbin/hanetpoll on
