This section shows design examples of PRIMECLUSTER system for Oracle Solaris Zones environments. Refer to these examples when designing the PRIMECLUSTER system
System configuration

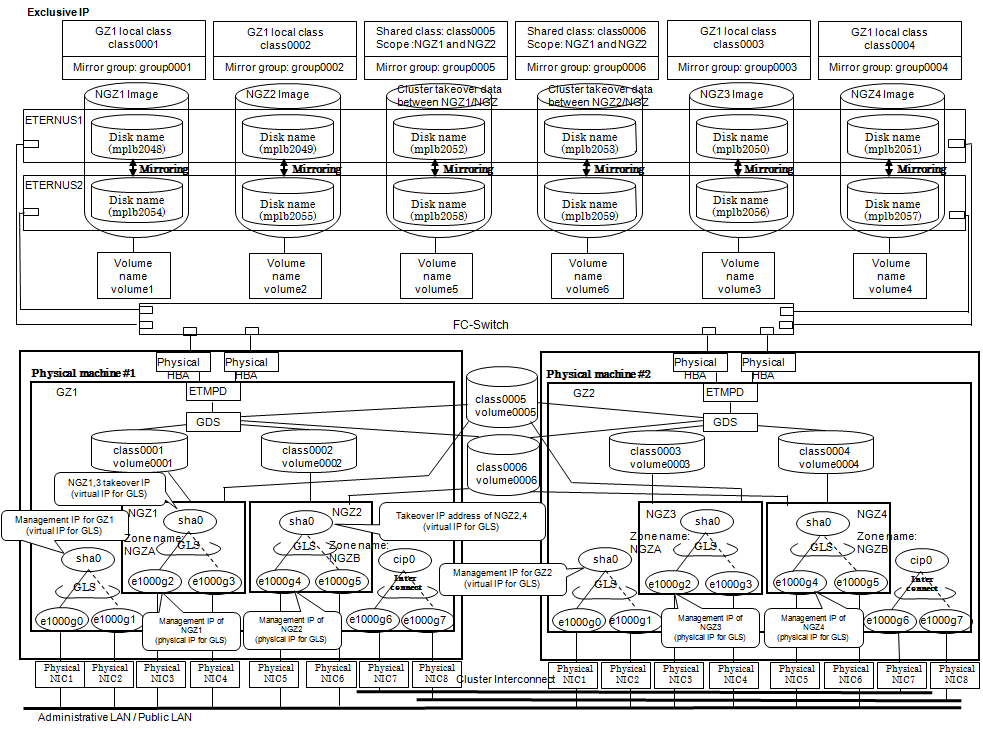

Figure H.20 System configuration example (exclusive IP zones)

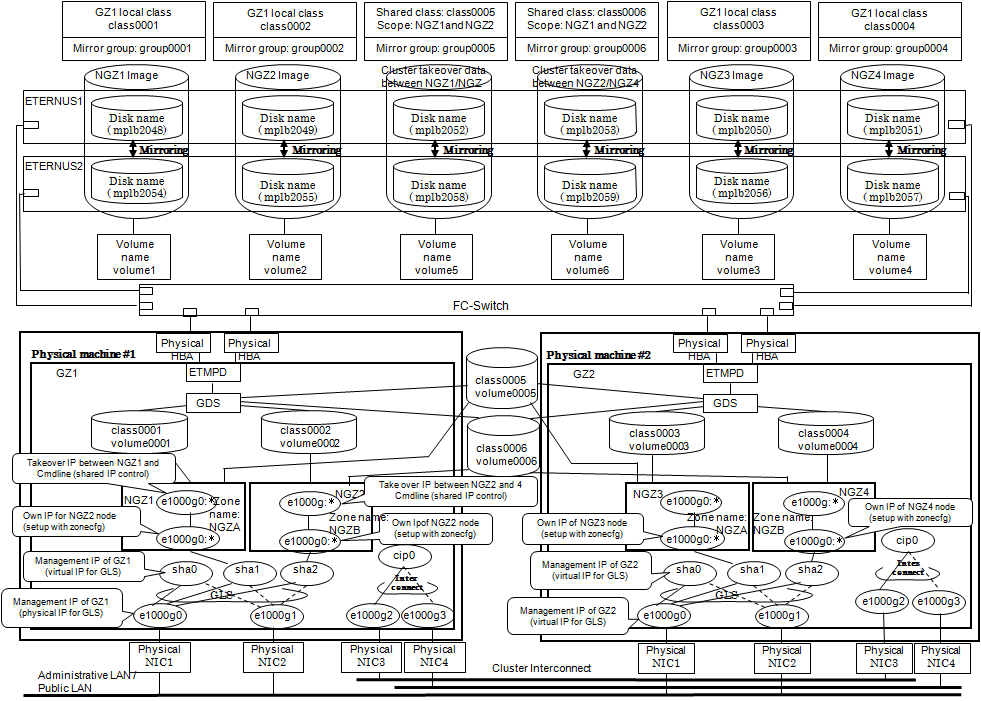

Figure H.21 System configuration example (shared IP zones)
Used hardware
SPARC Enterprise T5120
Used software
Solaris 11
Enhanced Support Facility 3.2
PRIMECLUSTER 4.3A10
Fujitsu PCI fibre Channel 4.0
Internet Explorer 8 (installed in the operation management computer)
J2SE(TM) Runtime Environment 6 (installed in the operation management computer)
