This operational configuration consists of sites outside Japan using the global version of CS to perform centralized management.
This section describes how to install each component of Systemwalker Desktop Patrol, and the display locale of each window.
CS
Install CS outside Japan from the global version of the installation media.
OS (locale) | Installation method | Window display |
|---|---|---|
Other than Japanese | Install from the global version of the installation media. | English |
SS/AC/DS/CT/ADT
The installation method will be different depending on the location of installation and locale.
The following table shows the relationship between the installation method for each component and the window displays.
Installation location | OS (locale) | Component | Installation method | Window display |
|---|---|---|---|---|
Outside Japan | Other than Japanese | SS | Install from the global version of the installation media. | English |
AC | ||||
DS | Install using the installer downloaded from Web GUI. | English | ||
CT | ||||
ADT | ||||
Japanese | SS | Install from the global version of the installation media. | English | |
AC | ||||
DS | Install using the installer downloaded from Web GUI. | English | ||
CT | ||||
ADT | ||||
Japan | Other than Japanese | SS | Install from the global version of the installation media. | English |
AC | ||||
DS | Install using the installer downloaded from Web GUI. | English | ||
CT | ||||
ADT | ||||
Japanese | SS | Install from the Japanese version of the installation media. | Japanese | |
AC | ||||
DS | ||||
CT | ||||
ADT |
Web GUI
Windows are displayed according to the language (English in this operational configuration) that you installed on CS, regardless of the locale of the web GUI.
Browser (locale) | Installation method | Window display |
|---|---|---|
Other than Japanese | - | English |
Japanese | - | English |
Smart device CT, command mode CT
Use the installation procedure below, regardless of the locale.
After installation, windows will be displayed in Japanese or English according to the locale.
Locale | Component | Installation method | Window display |
|---|---|---|---|
Other than Japanese | Smart device CT | Use the installation procedure specific to the smart device. | English |
Command mode CT | Download from CS and use. | ||
Japanese | Smart device CT | Use the installation procedure specific to the smart device. | Japanese |
Command mode CT | Download from CS and use. |
Refer to "Chapter 2 Building the Operating Environment" for details on the installation procedure specific to the smart device.

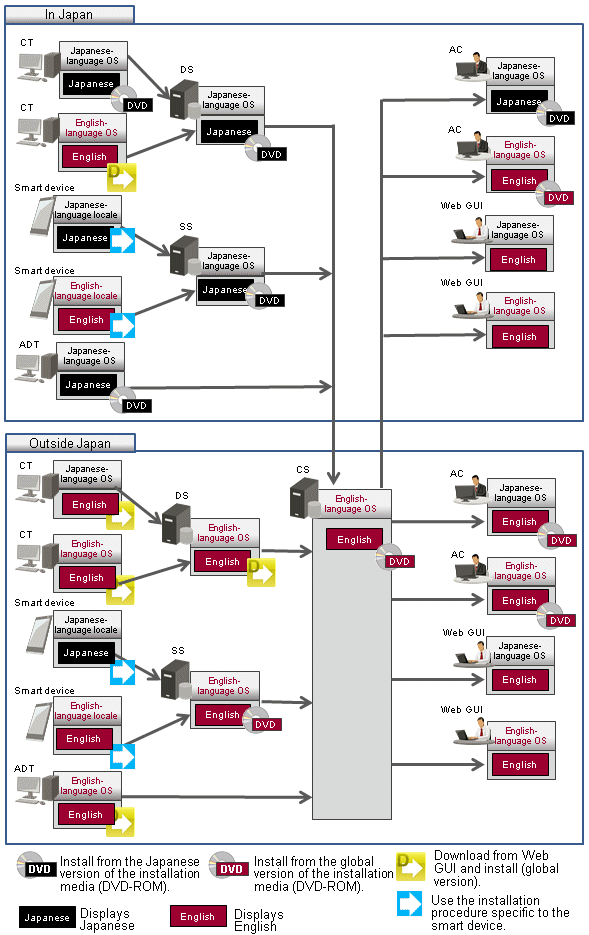

Figure 1.2 Operation when performing centralized management with a global version of CS
