5.5.5 Cascade(Fast switching mode)

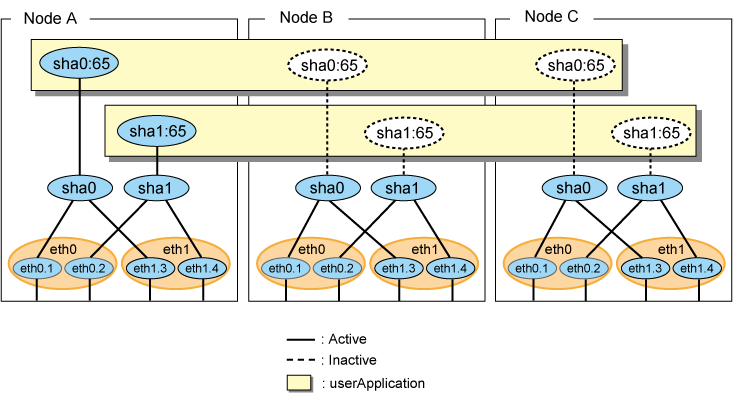

The figure below illustrates tagged VLAN interface multiplexing on a cluster system (Cascade).

Figure 5.41 Tagged VLAN interface multiplexing on Fast switching mode (Cascade)
