5.5.3 Mutual Standby(Fast switching mode)

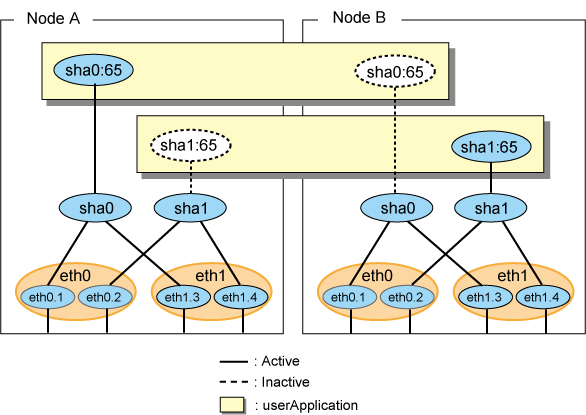

The figure below illustrates tagged VLAN interface multiplexing on a cluster system (Mutual standby).

Figure 5.39 Tagged VLAN interface multiplexing on Fast switching mode (Mutual Standby)
