5.5.1 Active standby(Fast switching mode)

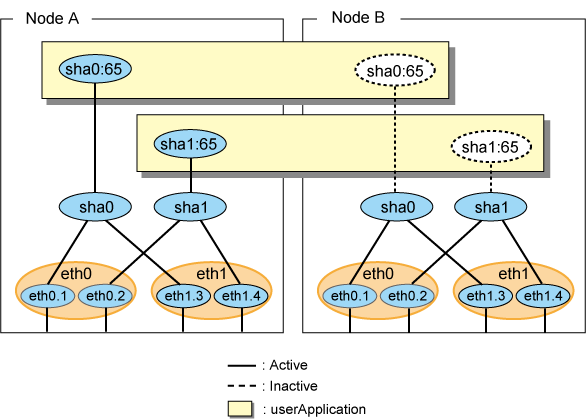

The figure below illustrates tagged VLAN interface multiplexing on a cluster system (standby).

Figure 5.37 Tagged VLAN interface multiplexing on Fast switching mode (Standby)
