Systemwalker Operation Manager classifies a business across projects, job nets, and jobs.
The relationship between projects, job nets, and jobs is shown below:
A project is a collection of different work units, and contains one or more job nets. It is the smallest unit for specifying job monitoring, making it easier to manage tasks when grouped according to type. Also, you can set access rights for projects.
A job net is a group of jobs for which an execution sequence is defined. Normally, you will seldom use just a single program when performing processing in a system. Instead, you will use a combination of several programs. Each program is called a job, and a collection of jobs is called a job net.
Flow of job registration
Use a flow similar to the one below to register and schedule jobs:
Flow of work units
The Job Selection window on the client displays various functions in a tree under Systemwalker Operation Manager. If the function (job) selected on the client has other branches (levels) below it, a "+" mark is displayed next to it.
The method to expand a tree structure, using the Jobscheduler function as an example, is explained below.

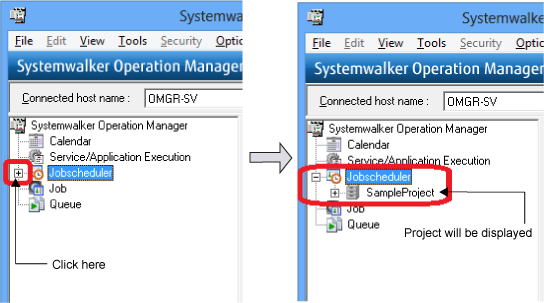

The relationship between a project and its component job nets is represented using a tree structure. Expanding Jobscheduler displays its registered projects.

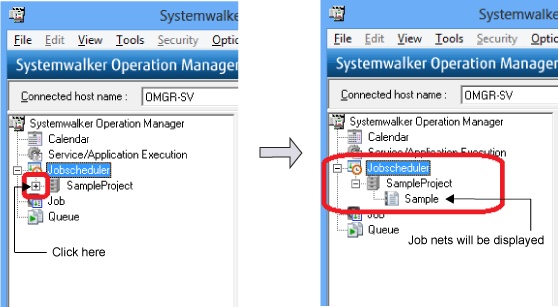

Expanding a project displays its registered job nets.
