This section explains the products, features, and networks that are part of a database multiplexing system.
The following table shows the network types uses by database multiplexing systems.
Network type | Description |
|---|---|
Job network | Network between the application that accesses the database, and the database server. |
Admin network | Network used by the primary server and the standby server to monitor each other using Mirroring Controller, and to control Mirroring Controller of other servers. |
Log transfer network | Network used to transfer the transaction logs of the database, which is part of database multiplexing. |

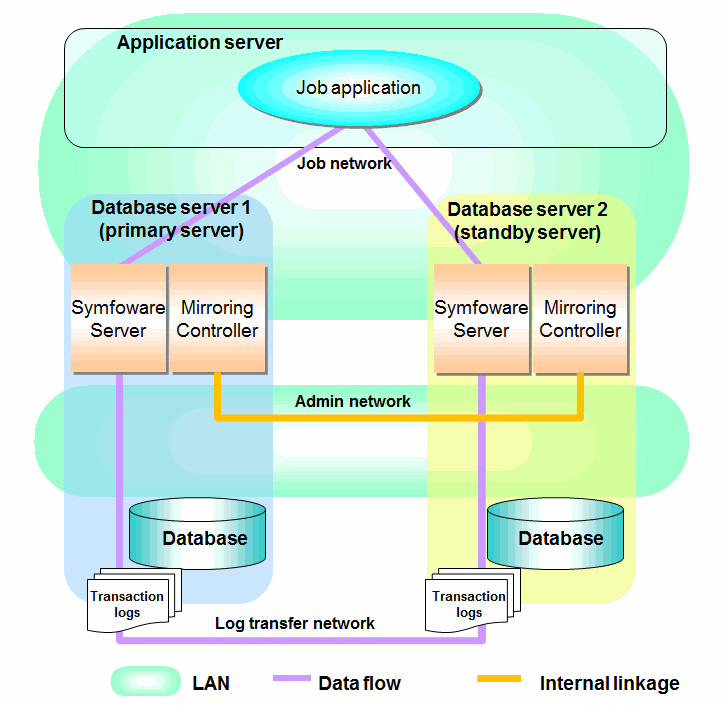

Figure 7.3 System configuration for database multiplexing mode
