Prepare the directories required when creating instances.
Considerations when deploying resources
The disk configuration on the resource deployment destination is important, because it affects not only recovery following disk corruption, but normal operation as well. The points for determining the disk configuration are as follows:
If the backup data storage destination and the data storage destination are both lost, it will not be possible to recover the data, so deploy them to separate disks.
To shorten the recovery time following a single disk fault, deploy the system disk and data storage destination to separate disks.
The backup data storage destination requires at least double the capacity of the data storage destination, so deploy it to the disk with the most space available.
When large amounts of data are updated, the write-to load for the data storage destination, transaction log storage destination, and backup data storage destination (mirrored transaction log) will also be great. For this reason, deploy them to separate disks, out of consideration for performance.
Note
When using the volume manager provided by the operating system, be aware of which physical disk the file system has been created on, for example, by deploying the data storage destination and the backup data storage destination to separate disks.
If using WebAdmin, specify an NTFS volume for the data storage destination and backup data storage destination. A network drive cannot be specified.

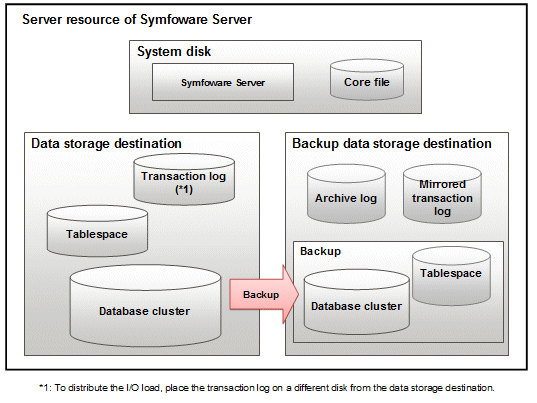

Resource | Role |
|---|---|
Database cluster | The area where the database is stored. It is a collection of databases managed by an instance. |
Tablespace | Stores table files and index files in a separate area from the database cluster. |
Transaction log | Stores log information in preparation for a crash recovery or rollback. |
Archive log | Stores log information for recovery |
Corefile | Symfoware Server process corefile output when an error occurs with a Symfoware Server process. |
The following are examples of disk deployment:
Number of disks | Disk | Deployment |
|---|---|---|
3 | System disk | Symfoware Server program |
Corefile | ||
Connected physical disk | Data storage destination, transaction log storage destination | |
Connected physical disk | Backup data storage destination | |
2 | System disk | Symfoware Server program |
Corefile | ||
Data storage destination, transaction log storage destination | ||
Connected physical disk | Backup data storage destination |
To generate an instance using WebAdmin, we propose an optimum deployment that takes into account the status of all disks at the time of instance is generation, and item 1 to 3 in the "Considerations when deploying resources" subheading above, based on the criteria below (note that a different deployment can also be specified).
The instance administrator has read and write privileges for the volumes.
Information
Even if the mount point of each file system was deployed to a different partition or slice, it will still be verified if they are on the same physical disk.
If the operating system volume manager was used, it will not be verified if the file systems were created on the same physical disk.
Preparing directories
The directories to be prepared depend on the way that you create the instances.
The following shows the directories that need to be prepared:
Directory to be prepared | Using WebAdmin | Using the initdb command |
|---|---|---|
Data storage destination | Y (*1) | Y |
Backup data storage destination | Y (*1) | O |
Transaction log storage destination | O (*1) (*2) | O |
Corefile output destination | N (*3) | O |
Y: Required
O: Optional
N: Not required
*1: WebAdmin automatically creates a directory
*2: The default is to create in a directory in the data storage destination. When it is necessary to distribute the I/O load for the database data and the transaction log, consider putting the transaction log storage destination on a different disk from the data storage destination
*3: The default is to output to "userProfileFolder\localSettingsFolder\Fujitsu\symfo_version\instanceName\core". For example, if using Windows Server(R) 2008 R2, userProfileFolder\localSettingsFolder will be "C:\Users\userName\AppData\Local".
To change the output destination, specify in the core_directory parameter and core_contents parameter in postgresql.conf. Refer to "Parameters" in the Operation Guide for information on the settings for these parameters.
Note
The directories must meet the following conditions:
The directory owner must be the OS user account that you want to be the instance administrator
The directory must have write permission
The directory must be empty
If using WebAdmin, network drives cannot be used.
If using WebAdmin, the following halfwidth characters can be used for directory names:
\(backslash)
- (hyphen)
_ (underscore)
: (colon)
Space
A-Z, a-z, 0-9 (alphanumeric)
If anti-virus software is used, set scan exception settings for folders so that none of the server resources that comprise Symfoware Server are scanned for viruses. Alternatively, if the server resources that comprise Symfoware Server are to be scanned for viruses, stop the instance and perform the scan when tasks that use Symfoware Server are not operating.
Confirm and configure directory access permissions
If the instance administrator user has "Administrator" permissions (user ID belonging to the Administrators group), it is necessary to configure the settings so that each directory inherits the file and directory access permissions for the instance administrator user.
Therefore, ensure that the setting to inherit permissions has been configured.
The following is an explanation on how to confirm and configure the settings.
Perform the following operations in Windows Explorer on the directories to be prepared in advance:
Right-click on the applicable directory, and then click [Properties] from the menu that is displayed.
In the [applicableDir Properties] window, select [Security] >> [Advanced].
In the [Advanced Security Settings for applicableDir] window, and in the [Permission entries] list under the [Permissions] tab, confirm that the application destination of the instance administrator user is "This folder, subfolders and files".
Click [OK].

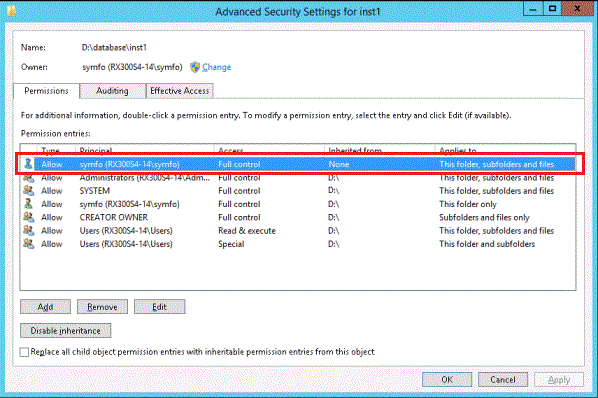

A confirmation example using Windows Server(R) 2012 is shown below.
Perform the following operations in Windows Explorer if there are any directories that have not been configured for the access permissions to be inherited.
Right-click on the applicable directory, and then click [Properties] from the menu that is displayed.
In the [applicableDir Properties] window, select [Security] >> [Advanced].
In the [Advanced Security Settings for applicableDir] window, under the [Permissions] tab, click [Change Permissions].
Click [Add].
In the [Select User or Group] window, enter the instance administrator user name as the object name to select, and then click [OK].
In the [Permission Entry for applicableDir] window, set [This folder, subfolders and files] for [Apply to], and under [Permissions], allow read and write permissions, and then click [OK].
In the [Advanced Security Settings for applicableDir] window, confirm that the instance administrator user has been added, with [This folder, subfolders and files] set for [Apply to] in the [Permission entries] list.
Click [OK].
Right-click on the applicable directory, and then click [Properties] from the menu that is displayed.
In the [applicableDir Properties] window, select [Security] >> [Advanced].
In the [Advanced Security Settings for applicableDir] window, click [Add].
In the [Permission Entry for applicableDir] window, click [Select a principal].
In the [Select User or Group] window, enter the instance administrator user name as the object name to select, and then click [OK].
In the [Permission Entry for applicableDir] window, set "This folder, subfolders and files" for "Apply to:", and under "Basic permissions", allow read and write permissions, and then click [OK].
In the [Advanced Security Settings for applicableDir] window, confirm that the instance administrator user has been added, with "This folder, subfolders and files" set for "Apply to" in the "Permission entries" list.
Click [OK].
Information
The access permissions can also be configured using the icacls command provided by the operating system.
The following is an execution example in which the application destination is set to "(OI)(CI)" and the access permissions are set to "(F)(Full access permissions)" when the data storage destination is "D:\database\inst1" and the instance administrator user is "symfo":
>icacls D:\database\inst1 /grant symfo:(OI)(CI)(F) processed file: D:\database\inst1 Successfully processed 1 files; Failed processing 0 files
