When copying data by replicating VMwarer vSphere virtual machines or running Storage vMotion, Extended Copy (hereinafter referred to as "XCOPY") session starts by the Full Copy function of VMware vStorage APIs for Array Integration (VMware VAAI). However, Advanced Copy cannot be performed by AdvancedCopy Manager on the condition that a volume on which XCOPY session is running is taken as copy destination. For this reason, if you execute acopc start (OPC/QuickOPC copy start command) or acec start (Synchronous high-speed copy start command) on the condition that a volume which is copying data by replicating virtual machines or running Storage vMotion is taken as copy destintaion, an error message is displayed and the command may terminate abnormally.
If the command terminates abnormally, check on the Web Console or by accopy query (Copy session information display command) that no XCOPY session exists on the copy destination volume and then re-execute the command.

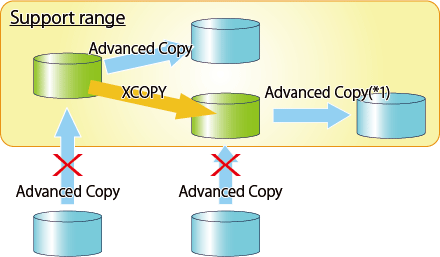

Figure 6.2 Use in combination with XCOPY
*1: In the following ETERNUS Disk storage systems whose firmware version number is V10L50 or earlier, Advanced Copy cannot be performed by AdvancedCopy Manager for a volume on which XCOPY session is running:
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000/DX8000 S2 series
