2.7.1 Output Items

Specifies which items in the input events and master data are to be output.

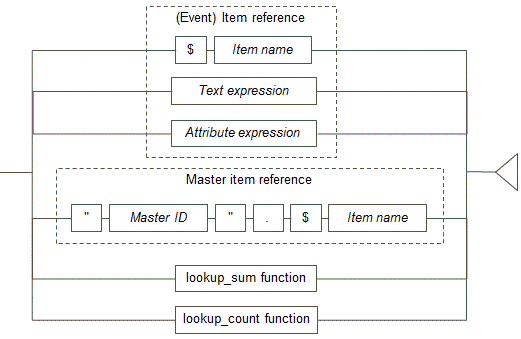

The format used for output item is shown below.

Item reference: Describe an item reference in accordance with the event type format.

Master item reference: Describe a master item reference in which a master ID and item name are combined.

lookup_sum function

This function returns the sum of the master item contents that results from joining to one master file.

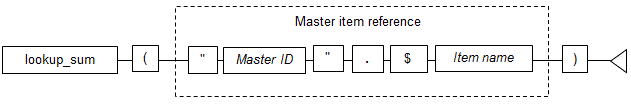

The format used for lookup_sum() function specified in the output expression is shown below.

lookup_count function

This function returns the master item count that results from joining to one master file.

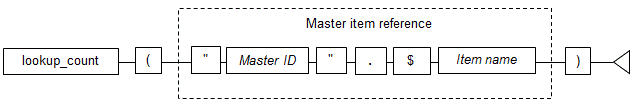

The format used for lookup_count() function specified in the output expression is shown below.

Note

If the lookup_sum() function or the lookup_count() function is specified for an output item, a property alias must be specified after the output item.

See

Refer to "2.8.4.2 lookup_sum() Function" for details.
Refer to "2.8.4.3 lookup_count() Function" for details.
