2.6 Output Adapter

The output adapter is a feature that outputs the processing results of complex event processing rules externally.

BDCEP provides four output adapters shown below, according to objective of the user:

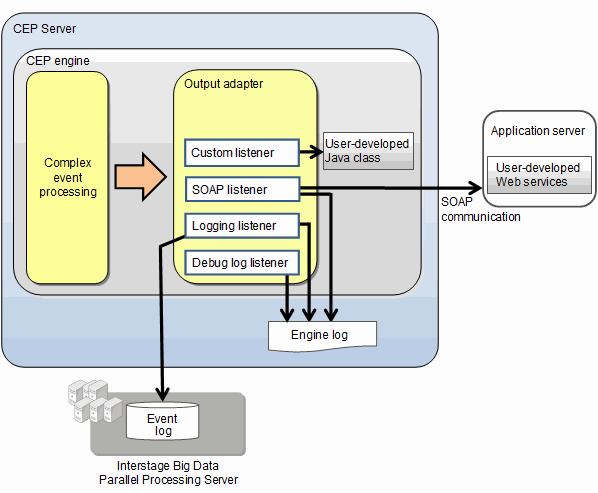

Figure 2.8 Output adapter

Table 2.1 Overview of the output adapter
Output adapter	Details of feature	Output destination
SOAP listener	Notifies the results of complex event processing (events) to a user-developed Web service, using SOAP communication	User-developed Web service Engine log (for send records)
Custom listener	Passes the results of complex event processing to a user-developed Java class, and executes them.	User-developed Java class
Logging listener	Logs the results of complex event processing	Event log (BDPP) Engine log
Debug log listener	Outputs debug information on complex event processing rules	Engine log
