BDCEP can access data in a distributed cache stored in the in-memory data management software Interstage Terracotta BigMemory Max (hereafter referred to as Terracotta)(*1).
This allows external data to be referenced more rapidly than a relational database (RDB). It also enables cache data to be added, updated, or deleted when an event occurs.
Information
(*1) Interstage Terracotta BigMemory Max
This is in-memory data management software that manages a terabyte or more of business data in server memory and enables ultra high-speed and stable access to business data.

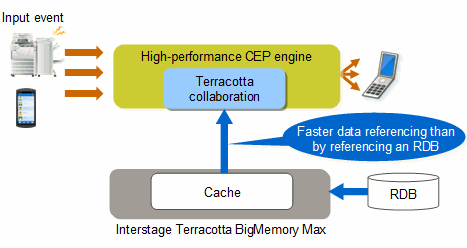

Figure 1.3 Terracotta collaboration (1)

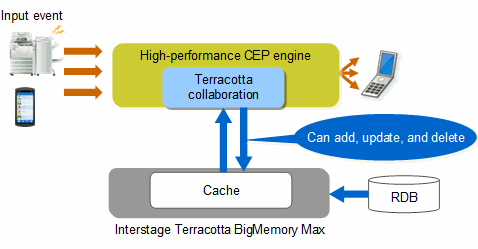

Figure 1.4 Terracotta collaboration (2)
Collaboration with a Hadoop system allows input events and events output by complex event processing to be accumulated in a Hadoop server.
Analysis and processing of the accumulated events by the Hadoop system allows long-term trend analysis of the events, and this can be harnessed for purposes that include business improvement and developing more accurate rules.
The Big Data analysis utilization software known as Interstage Big Data Parallel Processing Server (hereafter, referred to as "BDPP" - see information below) can be used in a Hadoop system.
Information
Based on Apache Hadoop, Interstage Big Data Parallel Processing Server is a Big Data support software on corporate systems that integrates Fujitsu proprietary techniques to further improve processing performance and reliability.

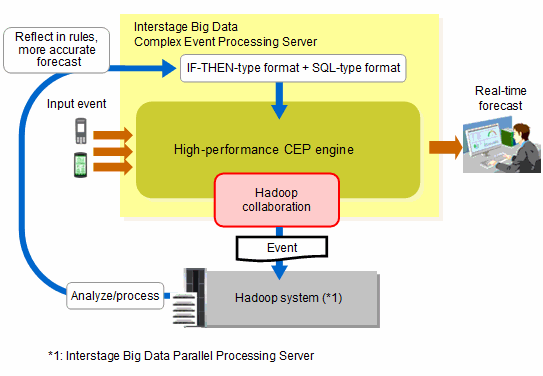

Figure 1.5 Hadoop collaboration
