4.5.1 Operation Menu Functions

Web-Based Admin View screen supports the functions shown below.

See "Menu Outline."

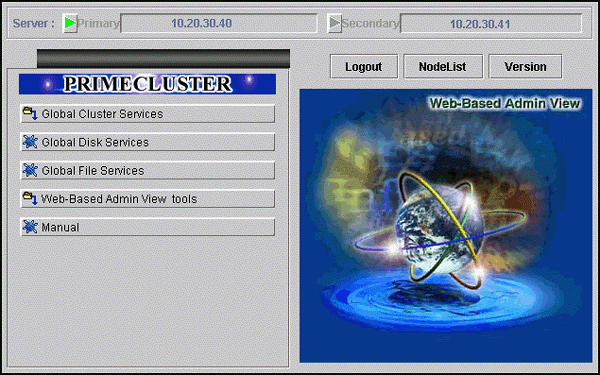

Figure 4.1 Web-Based Admin View screen

Menu Outline

The operation menus are divided into the following two categories:

1. PRIMECLUSTER category

   Management screens and manuals of operation management products that are presented by PRIMECLUSTER

2. MISC category

   Management screens and manuals of operation management products that are provided by non-PRIMECLUSTER products.

The following operations are enabled for each category:

• PRIMECLUSTER

  • Operation management product name

    You can operate the screen of the operation management product.

    For details, see the manual provided with each operation management product.

    • Global Cluster Services (CF, CRM, RMS, SIS)

    • Global Disk Services (PRIMECLUSTER GDS)

    • Global File Services (PRIMECLUSTER GFS)

  • Web-Based Admin View tools

    These tools display the Web-Based Admin View log and allow you to set the operation environment. For details, see "Part 3 Web-Based Admin View tools menu" in the "PRIMECLUSTER Web-Based Admin View Operation Guide."

  • Manual

    The PRIMECLUSTER online manual is displayed.

• MISC

  Buttons for starting the management screens of installed operation management products other than the PRIMECLUSTER products are displayed. For example, in an environment in which Symfoware is installed, this menu category will be displayed.

  For details, see the manual provided with each operation management product.

  • Operation management product name

    You can operate the management screens of installed operation management products other than the PRIMECLUSTER products.

    • Symfoware

  • Common

    You can refer to manuals that are available as online manuals. For details, see the "PRIMECLUSTER Web-Based Admin View Operation Guide."

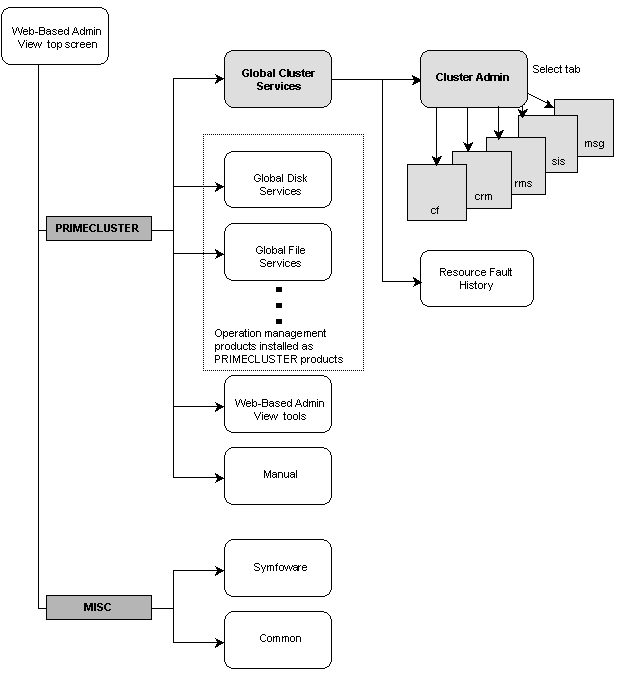

Operation menu transition diagram

Shown below are the transitions from the top screen of Web-Based Admin View to the other screens.

At the Cluster Admin screen, you can switch the window by clicking the following tabs:

• cf: Cluster Foundation

• crm: Cluster Resource Management

• rms: Reliant Monitor Services

• sis: Scalable Internet Services

• msg: Message

The following sections describe the screens found after the Global Cluster Services menu.

Note

SIS cannot be used with PRIMECLUSTER 4.3A00.
