This chapter explains how to build a system using this product.

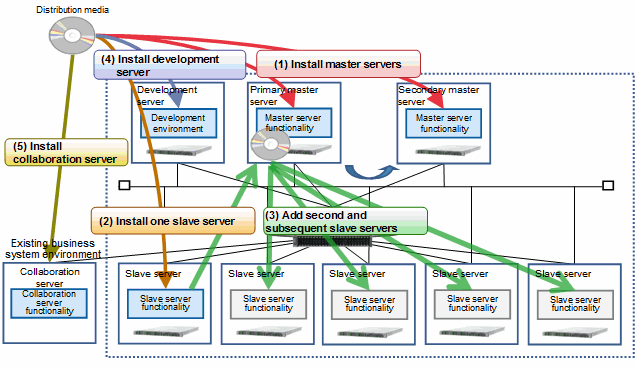

The sequence for building the system is shown below:
Installing to master servers
Refer to "6.1 Installing to Master Servers" for details.
Installing the first slave server
Refer to "6.2 Installing to a Slave Server" for details.
Adding second and subsequent slave servers
Smart Setup can be used to add second and subsequent slave servers (refer to "6.3 Adding Second and Subsequent Slave Servers" for details.
Information
As an example, this manual explains an initial installation of five slave servers, but the same operations can be used to add a greater number of slave servers.
Installing a development server
Refer to "6.4 Installing to a Development Server" for details.
Installing a collaboration server
Refer to "6.5 Installing to a Collaboration Server" for details.
Note
After installing to the various servers, apply the updates for this product and the updates for software included with this product.
Contact a technological staff of Fujitsu and obtain the product shown in the table below included in this product and the patch of the component.
Latest manuals (including any update from ones bundled in this product DVD) are available from the following site:
URL: http://www.fujitsu.com/global/support/software/manual/ (as of October 2013)
Products to which updates should be applied are as follows:
Product name | Product version | Installation environment | ||||
|---|---|---|---|---|---|---|
Master server | Slave | Development | Collaboration | |||
Primary | Secondary | |||||
Primesoft Distributed File System for Hadoop | 1.0.0 | Y | Y | Y | Y | Y |
PRIMECLUSTER Clustering Base | 4.3A10 | Y | Y | - | - | - |
PRIMECLUSTER GLS | 4.3A10 | Y | Y | Y(*1) | - | - |
ServerView Resource Orchestrator | V3.1.0A | Y(*1) | - | Y(*1) | - | - |
Y: Required
*1: Not required if installing in a virtual environment.
Point
It is recommended to back up the configuration information for the master servers, development servers, and collaboration servers after completing building of the system with this product and before starting operations.
Refer to "14.1 Backup" for information on backup.
