Interstage Studio J Business Kit GUI Library Sample Guide

1.3.22 JFToggleButton(Toggle Button)

The toggle button sample uses the JFToggleButton class.

The toggle button sample uses the following classes:

• JFToggleButton

• JFButtonGroup

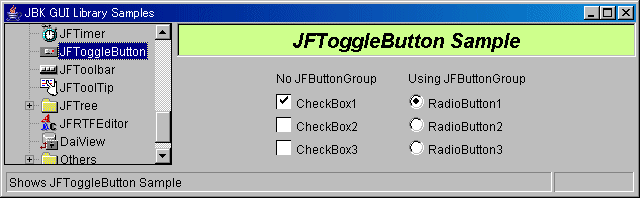

Figure 1.24 Toggle button sample

Operation method

• No JFButtonGroup

  Clicking the check box switches the ON/OFF status.

  • CheckBox1

  • CheckBox2

  • CheckBox3

• Using JFButtonGroup

  Clicking one radio button switches the other two radio buttons to OFF status and switches the clicked radio button to ON status.

  Only one radio button within the same group can be switched to ON status.

  • RadioButton1

  • RadioButton2

  • RadioButton3

Source codes

• Toggle button sample:"Sample Storage Destinations"/jftogglebutton/JFToggleButtonSample.java
