This section explains how L-Platform subscription is affected when there are locked resources for each of the following pages.
The [Search Template] page for new configurations
The [Select Template] page for saved configurations
The [Reconfigure] page

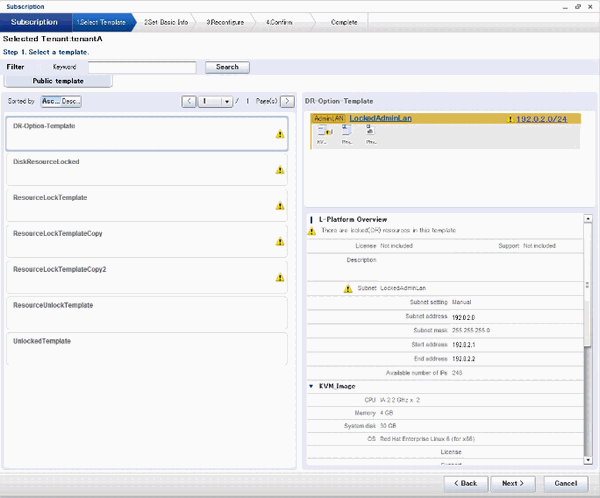

The [Select Template] Page for New Configurations
You can check whether an L-Platform template contains locked resources on this page.
If an L-Platform template contains locked resources, a warning icon is displayed on the right side of the list in the left part of the window. When the L-Platform template is selected, a message indicating that resources are locked is displayed in the [L-Platform Overview] of the template details area at the lower right of the window, and a warning icon is displayed next to the information for the locked resources.
The [Select Template] Page for Saved Configurations
As with the page for a new configuration, you can check whether an L-Platform template contains locked resources on this page.
If an L-Platform template contains locked resources, a warning icon is displayed on the right side of the list in the left part of the window. When the L-Platform template is selected, a message indicating that resources are locked is displayed in the [L-Platform Overview] of the template details area at the lower right of the window, and a warning icon is displayed next to the information for the locked resources.
In addition, saved configurations of an L-Platform template that satisfy any of the conditions below cannot be used to subscribe an L-Platform.
It is for a new L-Platform subscription, and it contains locked resources.
It is for an L-Platform reconfiguration, and it contains locked resources that have been added for the reconfiguration.

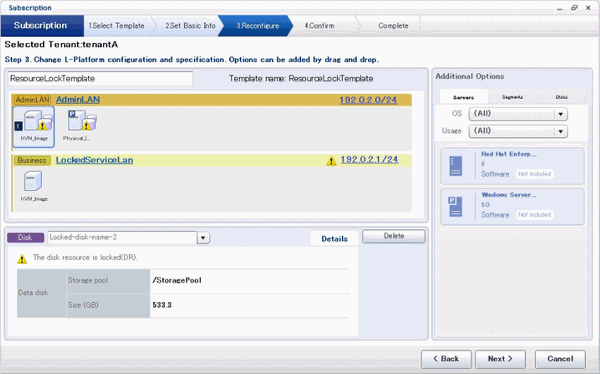

The [Reconfigure] Page
Locked resources are treated as follows in the [Reconfigure] page for subscribing an L-Platform:
Locked disk resources and segment information are not displayed as [Additional Options].
If an L-Platform template contains locked network resources, the corresponding segment is displayed with a warning icon next to the network resource name in the header.
If the L-Platform template contains locked disk resources, the corresponding server icon is displayed with a warning icon.
When a segment contained in the L-Platform template is selected and resources are locked, messages indicating that the resources are locked are displayed in the element details area.
When a server contained in the L-Platform template is selected and a disk with locked resources is selected in the element details area, messages indicating that the resources are locked are displayed.
If the L-Platform template contains a locked network resource, images cannot be added to the corresponding segment from [Additional Options].
