The standard model configuration configured for auto-configuration of network devices using the simple configuration mode is as shown below.

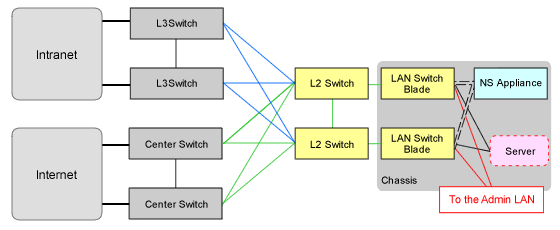

Figure I.4 Standard Model Configurations (NSAppliance)
The LAN ports used in the standard model configuration when performing auto-configuration of network devices using the simple configuration mode are as indicated below.
For Public LANs (Center Switch Side)
LAN0.0
For Public LANs (L2 Switch Side)
LAN0.1
For the Admin LAN
LAN0.3
Information
Configure the VLAN interfaces for the LAN ports to use in advance.
