System configuration of the virtualized server using Solaris zones is explained here.
Example of System Configuration
Below is a sample of system configuration when using a Solaris zone.

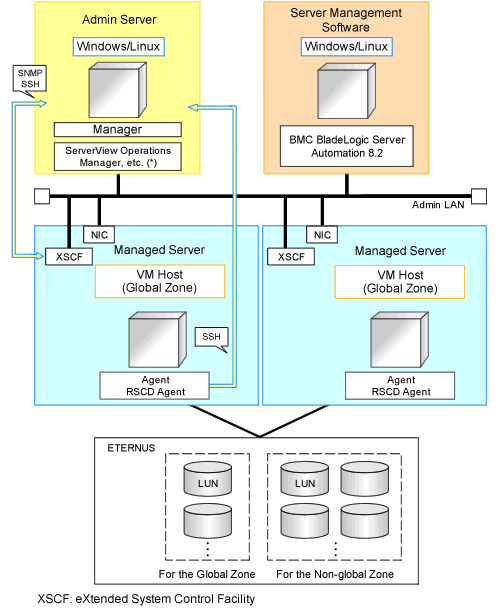

Figure E.18 System Configuration Example Using Solaris Zones
* Note: For details on required software, refer to "2.4.2.4 Required Software".
Network Configuration Example
An example network configuration using a Solaris zone is given below:

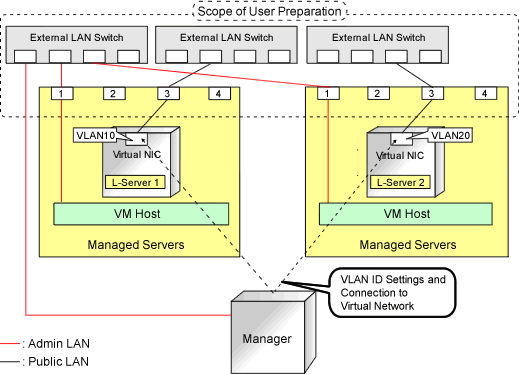

Figure E.19 Network Configuration of L-Servers for Solaris Zones
L-Server Creation Procedure
The procedure for creating L-Servers is shown below.
Note
When using Solaris 11 VM hosts, virtual L-Servers cannot be created. The following operations are supported.
Linking of configured virtual machines and L-Servers
Unlinking of L-Servers
Power operations

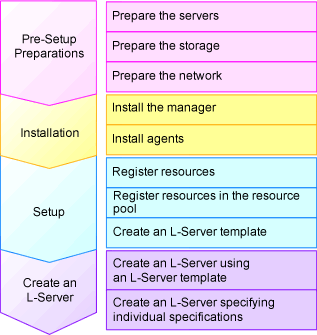

Figure E.20 Resource Orchestrator Setup Procedure
For details on pre-setup preparations, refer to "E.6 Solaris Zones".
For details on how to install Resource Orchestrator, refer to "Chapter 2 Installation" in the "Setup Guide CE".
For details on setup, refer to "C.7 Solaris Zones" in the "Setup Guide CE".
For details on how to create an L-Server, refer to "C.7.6 Creating an L-Server" in the "Setup Guide CE".
