This section describes the event log displayed in the ROR console.

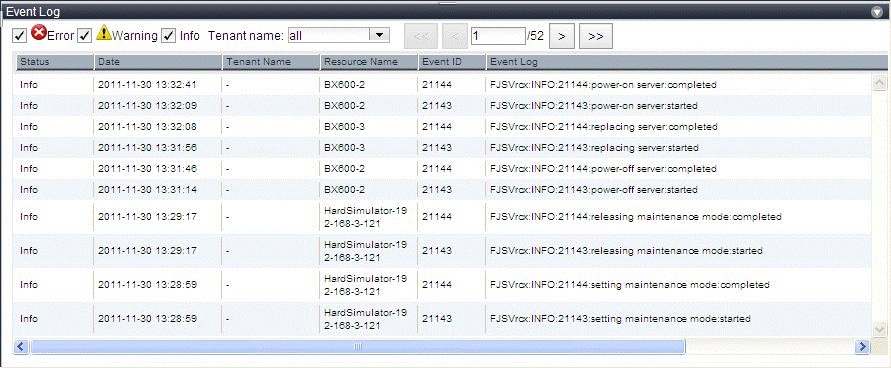

Figure 1.8 Event Log
The event log displays a history of events that have occurred on managed resources. These events are added to the log automatically.
Each event displayed in the event log provides the following information.
Information Displayed in the Event Log
Displays the level of the event.
There are three levels: "Error", "Warning", or "Info".
Date and time at which the event occurred.
Name of the resource associated with the event.
Identifier related to the event.
No event ID is displayed for network resources.
Content of the event.
The event log can be filtered using the event log checkboxes.
Selecting a checkbox will show the events whose status corresponds to that of the selected checkbox. Clearing a checkbox will hide such events.
Select a tenant in the [Tenant name] list in the event log to show only those event logs related to that tenant.
Clicking a column heading will change the color of the selected column and sort events in either ascending or descending order.
In each page of the list, 10 items can be displayed. It is possible to specify the page number to display, move forwards and backwards by single pages, and move to the first or last page.
Note
When a resource's status becomes "fatal", its related event shows an "Error" status in the event log. For this reason, the actual status of a resource should be confirmed from either the resource tree or the [Resource List] tab.
Information
For the SPARC Enterprise T series, the following levels are displayed for SEVERITY values of hardware SNMP Trap MIBs (SUN-HW-TRAP-MIB.mib).
When SEVERITY is Critical or Major:
"Error" is displayed.
When SEVERITY is Minor:
"Warning" is displayed.
When SEVERITY is Informational:
"Info" is displayed.
