Information is displayed in the screens below when operations are performed by the automatic operation process:
OS restart judgment screen
Displayed if the Web service status is running
Management ledger is filled out screen
Displayed when the first response by the automatic operation process ends
Action approved screen
Displayed when the automatic operation process ends

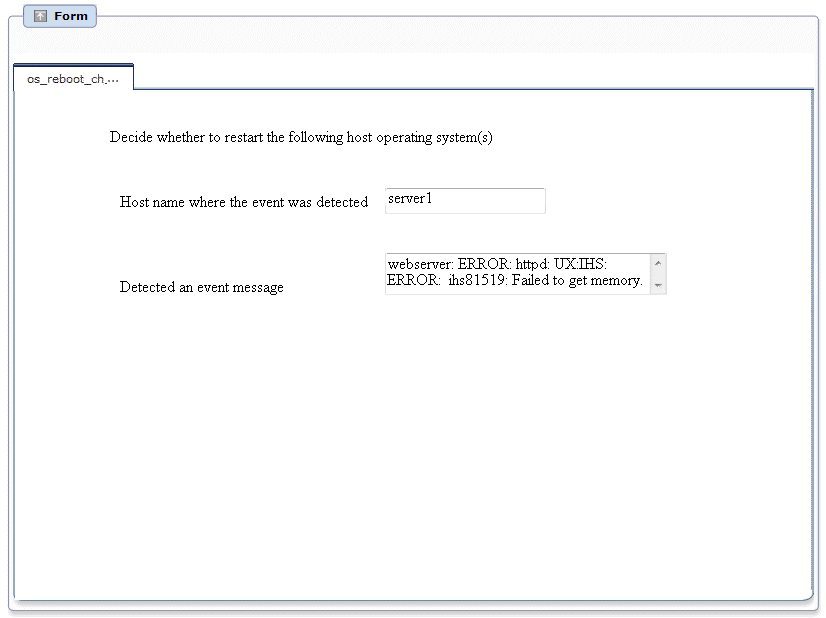

Information displayed in the OS restart judgment screen
The user-defined attributes shown below are displayed in the OS restart judgment screen.
Display item | Displayed Content | Automatic operation process user-defined attribute used for display |
|---|---|---|
Host Name detected Event | Outputs the host name or IP address of the server targeted for restart (*1) | host |
Detected Event Message | Outputs the event message detected by Systemwalker Centric Manager (*1) | msgtext |
Note 1:
Displays information fetched from Systemwalker Centric Manager

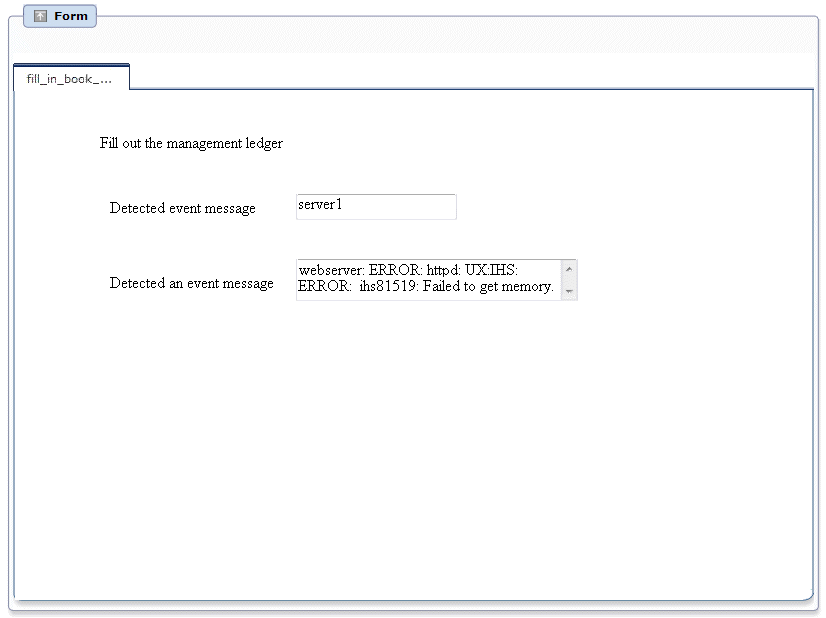

Information displayed in the Management ledger is filled out screen
The user-defined attributes shown below are displayed in the Management ledger is filled out screen.
Display item | Displayed Content | Automatic operation process user-defined attribute used for display |
|---|---|---|
Host name detected event | Outputs the host name or IP address of the server that issued the event (*1) | host |
Detected Event Message | Outputs the event message detected by Systemwalker Centric Manager (*1) | msgtext |
*1:
Displays information fetched from Systemwalker Centric Manager

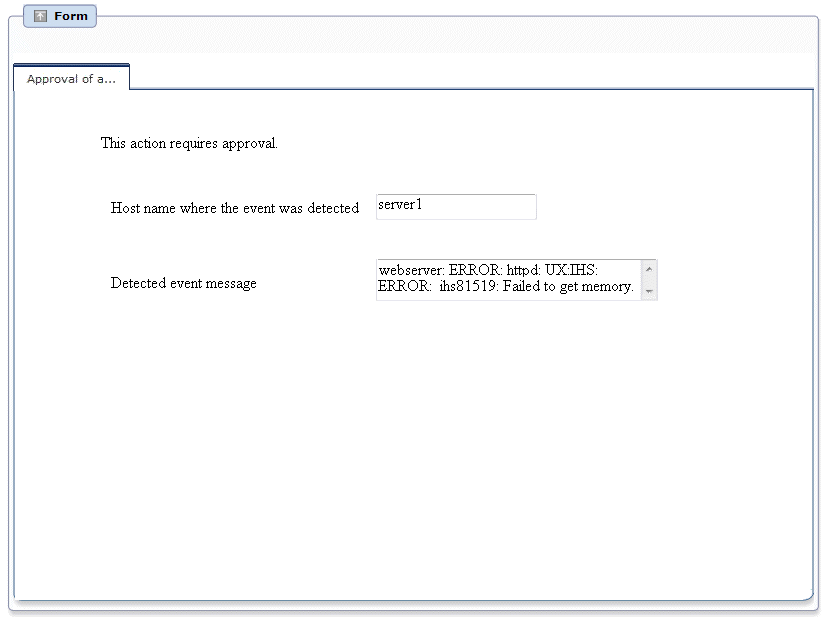

Information displayed in the Action approved screen
The user-defined attributes shown below are displayed in the Action approved screen.
Display item | Displayed Content | Automatic operation process user-defined attribute used for display |
|---|---|---|
Host name detected event | Outputs the host name or IP address of the server that issued the event (*1) | host |
Detected Event Message | Outputs the event message detected by Systemwalker Centric Manager (*1) | msgtext |
*1:
Displays information fetched from Systemwalker Centric Manager
