Systemwalker Service Quality Coordinator Reference Guide
Systemwalker

1.1 Policy Commands

Performance information can begin to be collected after Enterprise Managers, Managers, Proxy Managers and Agents have been installed and a collection policy has been created and applied.

Note

When the following operation is done with the object server, re-creation of policy and collection of the configuration information on the Operation Management Client is required.

  • When the Information Collection Policy is changed
    EXAMPLE:

    • Changing the collection template (template.dat)

    • Changing the response and managed object configuration information (ServiceConf.xml)

  • When the cooperate middleware is installed
    EXAMPLE:

    • Installing the Symfoware Server

  • When the cooperate middleware is uninstalled
    EXMPLE:

    • Uninstalling the Operation Manager

  • When the cooperate middleware settings are changed
    EXAMPLE:

    • Changing the Interstage settings

    • Changing the Symfoware Server settings

    • Changing the Oracle settings

    • Changing Centric Manager linkage settings

  • When the hardware organization of the server is changed
    EXAMPLE:

    • Changing the single/multi processor of the Linux server

  • When the environment of the OS is changed
    EXAMPLE:

    • Changing host name

    • Changing sysatat's version by applying Linux patch

  • When the definition file is changed by changing IP address, user name, and/or password of the monitoring server for agents for Agentless Monitoring
    EXAMPLE:

    • Changing the connection account configuration file (remoteAccount.txt)

    • Changing the remote monitoring configuration file (remoteAgent.txt)

  • When the definition file is changed by changing IP address of the monitored object for ECO information
    EXAMPLE:

    • Changing the configuration information file of SNMP agents (ecoAgentInfo.txt)

    • Changing the ECO information collection definitions file (collectOID.txt)

Point

  • Broadly speaking, two types of information are collected:

    • Server resource information (information that can be collected by Enterprise Managers, Managers, Proxy Managers and Agents)

    • Response and operational information (information that can be collected by Managers and Proxy Managers)

  • A collection policy must first be created and then applied.

  • A policy that has been applied can be modified temporarily.
    Commands are provided for each of these operations.

  • Information collection begins with the creation of a collection policy. Always create a collection policy before attempting to apply it.

Some of the policy commands explained in this manual run on a server and some run on an operation management client.


Execution environment

Command name

Use

Enterprise Manager/Manager/Proxy Manager/Agent

1.1.1 sqcRPolicy (Server Resource Information Collection Policy Creation Command)

These commands are used for collecting performance information.

1.1.2 sqcAPolicy (Response / Operation Information Collection Policy Setup Command)

1.1.3 sqcSetPolicy (Policy Application Command)

1.1.4 sqcMdPolicy (Temporary Policy Change Command)

This command temporarily changes (stops/starts) the collection operation.

Operation management client

1.1.5 sqcViewPolicy (Policy Definition Information Verification Command)

These commands are used when the policy distribution function is used.

1.1.6 sqcSendPolicy (Policy Definition Information Distribution Command)

1.1.7 sqcCtrlPolicy (Remote Policy Operation Command)

Refer to "Policy Distribution" in the User's Guide for details on the policy distribution function.

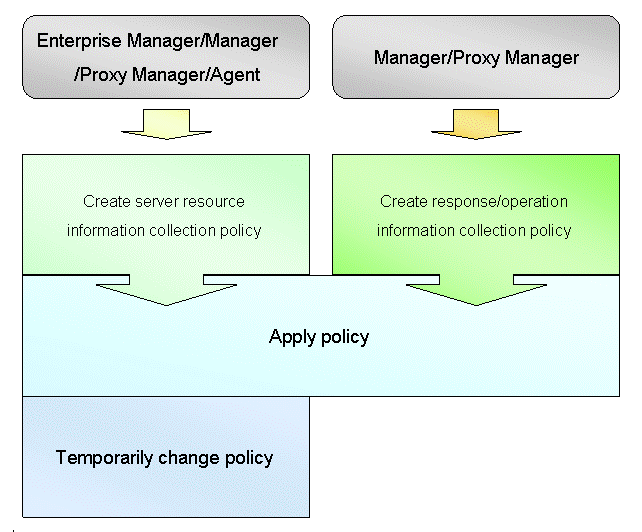

Creating and applying a policy on the server from which performance information is to be collected

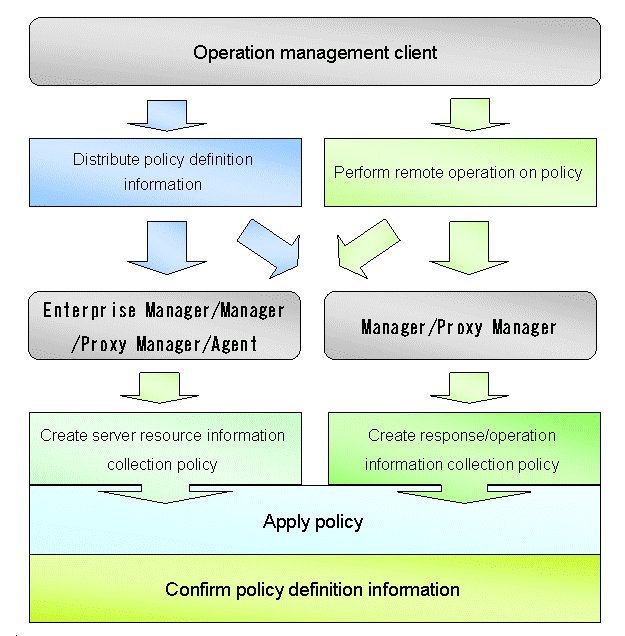

Using the policy distribution function

Point

The policy distribution function is particularly effective when distributing the same definitions to multiple servers. Use this function according to the number and status of the managed servers.
