5.4.1 Search Conditions Area

The search conditions area is explained.

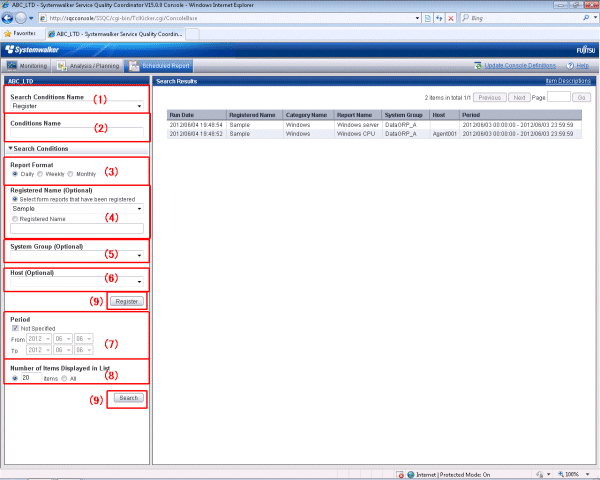

Basic operation

Item No.

Component

Description

(1)

Search condition name

Identifier for registered search conditions.

Currently registered search conditions can be selected from a drop-down list box.
Select Register to register new conditions.

Searches are possible even without registering conditions.

(2)

Condition name

Displayed when Register is selected in Search Conditions Name.

The following characters can be used for search condition names:
- Alphanumeric characters
- Symbols (except for $ " ' [ ] < > / ? | ; : * \ & , . =)

Platform dependent characters can not be used.

The registered report name can be no longer than 36 characters.

(3)

Report formats

Select daily, weekly, or monthly.

(4)

Registered report name
(any)

Registered report names can be specified. Currently registered report names can be selected from a drop-down list box. If a report is not registered, it is possible to input its name directly to specify it.

(5)

System group
(any)

System groups can be specified.

(6)

Host
(any)

Hosts can be specified.

(7)

Period

Report periods can be specified.

Ensure the period that includes the scheduled reports you want to retrieve is specified.

For example, to retrieve the weekly report for August 31 to September 6, make the report start date before August 31 and the report finish date after September 6.

(8)

Number of reports to display

Specify the number of reports to display in scheduled reports list display area.
Either specify all reports or a number of reports.

  • Report number specification

    A value between 1 and 1000 can be entered.
    The specified number of reports will be displayed on one page.

  • All items specification

    All scheduled reports are displayed on one page.

(9)

Operation buttons display area

  • Registered
    Displayed when Register is selected in Search Conditions Name.
    Registers new search conditions under the name specified in Conditions Name.

  • Register
    Displayed when a registered condition name other than Register is selected in Search Conditions Name.
    Use when copying a condition for use. Registers new search conditions under the name specified in the dialog that appears when the Register button is pressed.

  • Save Over Current
    Displayed when a registered condition name other than Register is selected in Search Conditions Name.
    Use when changing a condition.

  • Delete
    Displayed when a registered condition name other than Register is selected in Search Conditions Name.
    Use when deleting a condition.

  • Search
    Searches for scheduled reports under the specified conditions.
    The retrieved scheduled reports are displayed in scheduled reports list display area at the right.
