B.1 Obtaining the System Configuration File (CSV Format)

The system configuration files can be obtained as follows.

From the selection window of the Resource Orchestrator DVD-ROM [Windows]
Setting the Resource Orchestrator DVD-ROM in the CD-ROM drive automatically displays the screen below. Select "Tool" and click "System Configuration Template (CSV format)". The CSV file will be opened from the associated application (such as Excel). Check the file content and save it.

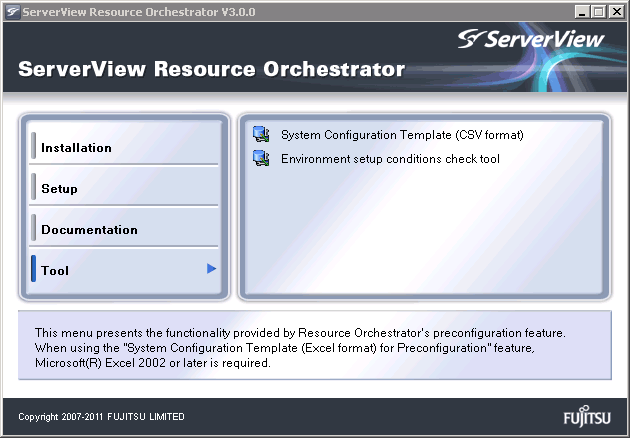

Figure B.1 Selection Window
Information
If the above window does not open, execute "RcSetup.exe" from the DVD-ROM drive.
From the Resource Orchestrator DVD-ROM
Set the Resource Orchestrator DVD-ROM in the DVD-ROM drive and copy the following file.
[Windows]
DVD-ROM_drive\template\ja\template.csv
[Linux]
DVD-ROM_mount_point/template/ja/template.csv
From the ROR console
The System Configuration Template can be obtained from a Resource Orchestrator manager installation.
1. Open and log in to the ROR console according to "Chapter 1 Login and Logout".
2. Select [File]-[System Configuration File]-[Download Template] from the ROR console menu.
  Displays the [File Download] window.
3. Click <Save>.
4. Specify the destination directory and the file name.
5. Click <Save>.
